DNSViz: A DNS visualization tool

fbi.gov

Updated: 2021-06-10 21:56:50 UTC (5 days ago) Update now
« Previous analysis | Next analysis »
DNSSEC options (hide)
  1. |?|
  2. |?|
  3. |?|
  4. |?|
  5. |?|
  6. |?|
  7. |?|
Notices
DNSSEC Authentication Chain

RRset statusRRset status

Secure (6)
  • fbi.gov/A
  • fbi.gov/AAAA
  • fbi.gov/MX
  • fbi.gov/NS
  • fbi.gov/SOA
  • fbi.gov/TXT

DNSKEY/DS/NSEC statusDNSKEY/DS/NSEC status

Secure (13)
  • ./DNSKEY (alg 8, id 14631)
  • ./DNSKEY (alg 8, id 20326)
  • fbi.gov/DNSKEY (alg 8, id 19010)
  • fbi.gov/DNSKEY (alg 8, id 35349)
  • fbi.gov/DNSKEY (alg 8, id 5781)
  • fbi.gov/DNSKEY (alg 8, id 60304)
  • fbi.gov/DS (alg 8, id 19010)
  • fbi.gov/DS (alg 8, id 19010)
  • fbi.gov/DS (alg 8, id 5781)
  • fbi.gov/DS (alg 8, id 5781)
  • gov/DNSKEY (alg 8, id 48498)
  • gov/DNSKEY (alg 8, id 7698)
  • gov/DS (alg 8, id 7698)

Delegation statusDelegation status

Secure (2)
  • . to gov
  • gov to fbi.gov

NoticesNotices

Errors (3)
  • fbi.gov zone: The server(s) were not responsive to queries over UDP. (2001:4860:4802:32::6e, 2001:4860:4802:34::6e, 2001:4860:4802:36::6e, 2001:4860:4802:38::6e)
  • fbi.gov/A: No response was received from the server over UDP (tried 12 times). (2001:4860:4802:32::6e, 2001:4860:4802:34::6e, 2001:4860:4802:36::6e, 2001:4860:4802:38::6e, UDP_-_NOEDNS_)
  • fbi.gov/NS: No response was received from the server over UDP (tried 12 times). (2001:4860:4802:32::6e, 2001:4860:4802:34::6e, 2001:4860:4802:36::6e, 2001:4860:4802:38::6e, UDP_-_NOEDNS_)
Warnings (8)
  • fbi.gov/DS (alg 8, id 19010): DNSSEC specification prohibits signing with DS records that use digest algorithm 1 (SHA-1).
  • fbi.gov/DS (alg 8, id 19010): DNSSEC specification prohibits signing with DS records that use digest algorithm 1 (SHA-1).
  • fbi.gov/DS (alg 8, id 19010): DS records with digest type 1 (SHA-1) are ignored when DS records with digest type 2 (SHA-256) exist in the same RRset.
  • fbi.gov/DS (alg 8, id 19010): DS records with digest type 1 (SHA-1) are ignored when DS records with digest type 2 (SHA-256) exist in the same RRset.
  • fbi.gov/DS (alg 8, id 5781): DNSSEC specification prohibits signing with DS records that use digest algorithm 1 (SHA-1).
  • fbi.gov/DS (alg 8, id 5781): DNSSEC specification prohibits signing with DS records that use digest algorithm 1 (SHA-1).
  • fbi.gov/DS (alg 8, id 5781): DS records with digest type 1 (SHA-1) are ignored when DS records with digest type 2 (SHA-256) exist in the same RRset.
  • fbi.gov/DS (alg 8, id 5781): DS records with digest type 1 (SHA-1) are ignored when DS records with digest type 2 (SHA-256) exist in the same RRset.

DNSKEY legend

Full legend
SEP bit setSEP bit set
Revoke bit setRevoke bit set
Trust anchorTrust anchor
Download: png | svg
Warning JavaScript is required to make the graph below interactive.

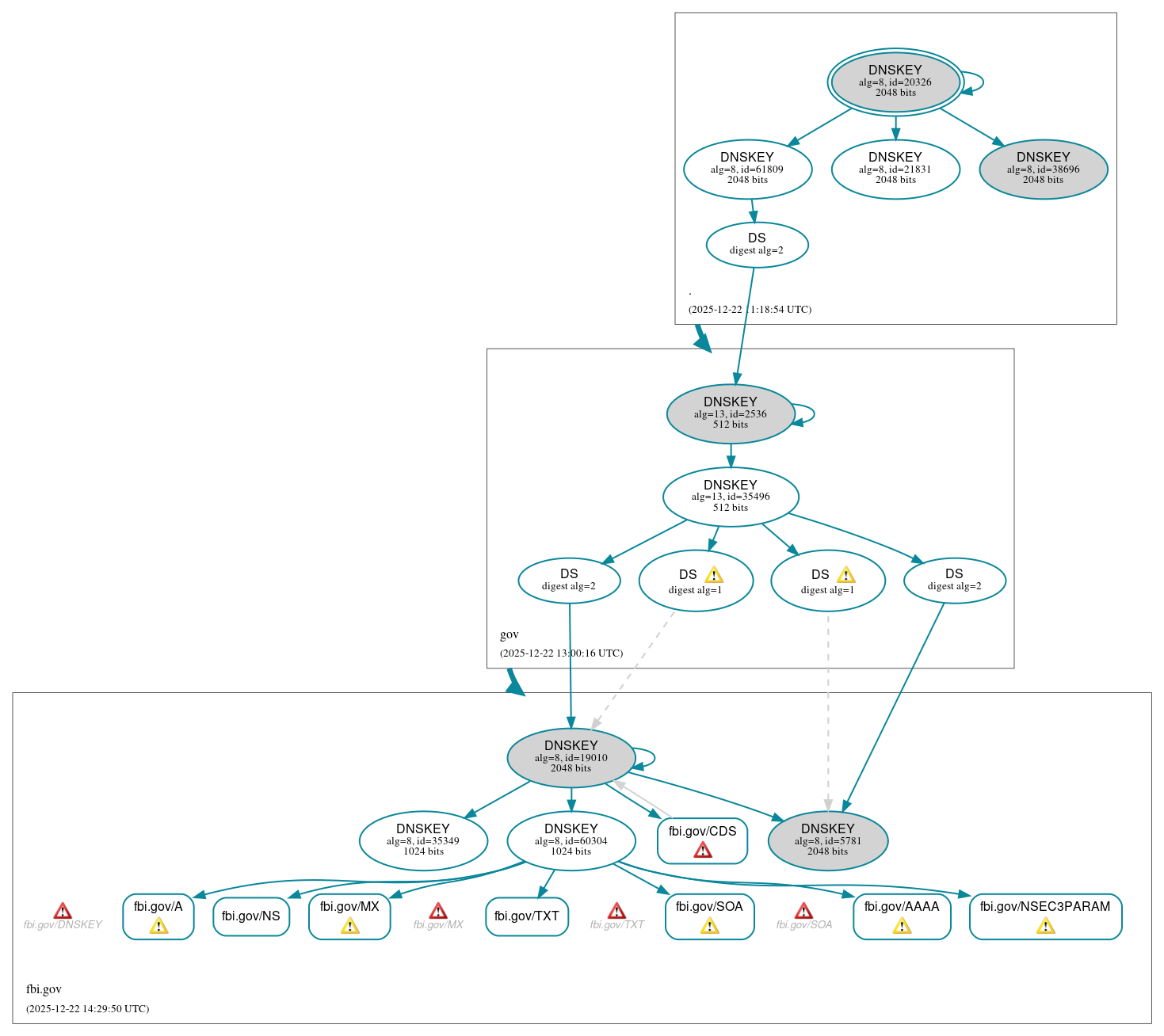

DNSSEC authentication graph
