DNSViz: A DNS visualization tool

ethz.ch

Updated: 2023-01-22 16:40:36 UTC (16 days ago) Update now
« Previous analysis | Next analysis »
DNSSEC options (hide)
  1. |?|
  2. |?|
  3. |?|
  4. |?|
  5. |?|
  6. |?|
  7. |?|
Notices
DNSSEC Authentication Chain

RRset statusRRset status

Secure (6)
  • ethz.ch/A
  • ethz.ch/AAAA
  • ethz.ch/MX
  • ethz.ch/NS
  • ethz.ch/SOA
  • ethz.ch/TXT

DNSKEY/DS/NSEC statusDNSKEY/DS/NSEC status

Secure (8)
  • ./DNSKEY (alg 8, id 20326)
  • ./DNSKEY (alg 8, id 951)
  • ch/DNSKEY (alg 13, id 10)
  • ch/DNSKEY (alg 13, id 19537)
  • ch/DNSKEY (alg 13, id 35069)
  • ch/DS (alg 13, id 10)
  • ethz.ch/DNSKEY (alg 13, id 43502)
  • ethz.ch/DS (alg 13, id 43502)

Delegation statusDelegation status

Secure (2)
  • . to ch
  • ch to ethz.ch

DNSKEY legend

Full legend
SEP bit setSEP bit set
Revoke bit setRevoke bit set
Trust anchorTrust anchor
Download: png | svg
Warning JavaScript is required to make the graph below interactive.

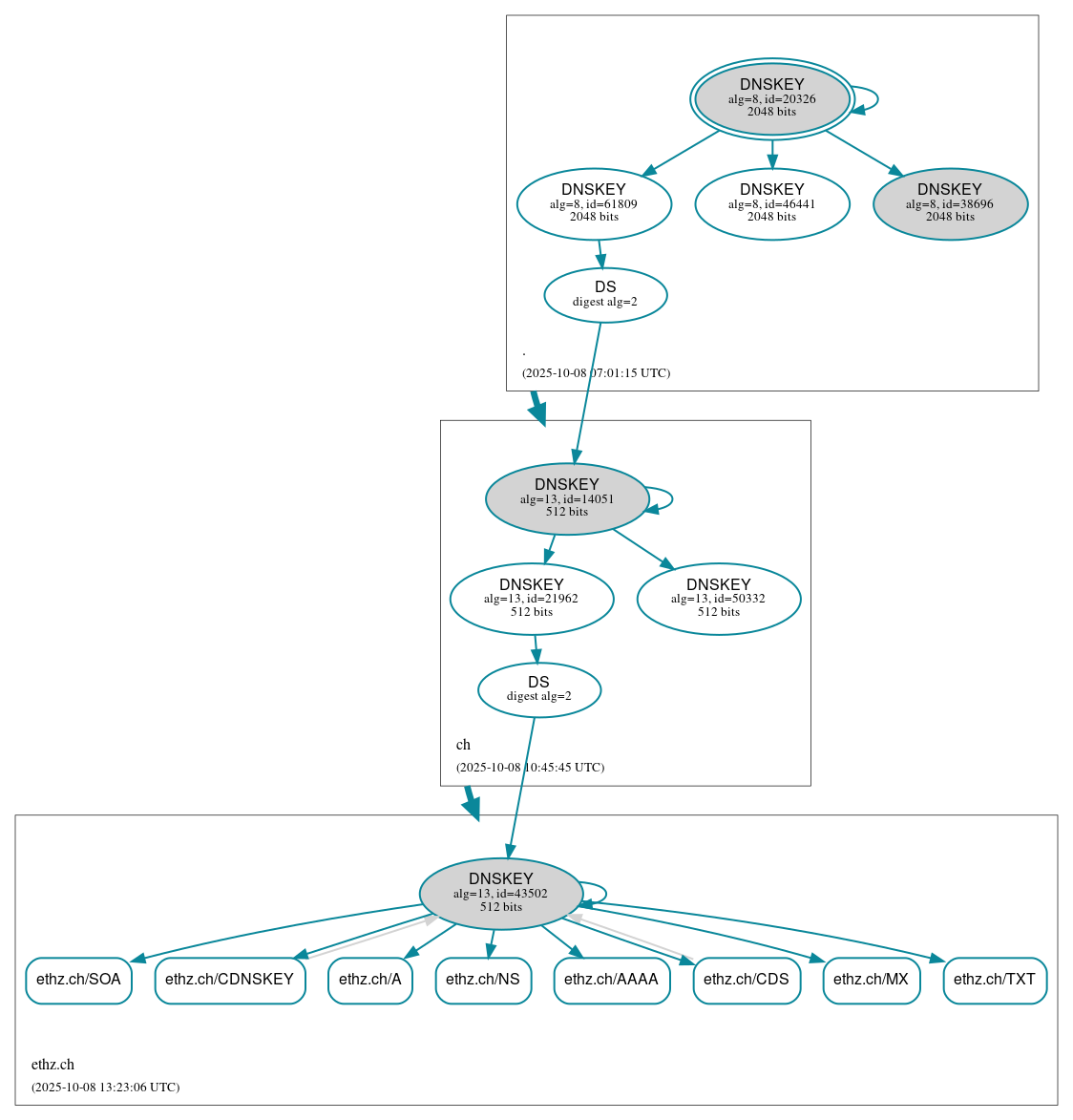

DNSSEC authentication graph
