DNSViz: A DNS visualization tool

edu.pl

Updated: 2024-04-11 12:03:14 UTC (14 days ago) Update now
« Previous analysis | Next analysis »
DNSSEC options (hide)
  1. |?|
  2. |?|
  3. |?|
  4. |?|
  5. |?|
  6. |?|
  7. |?|
Notices
DNSSEC Authentication Chain

RRset statusRRset status

Secure (3)
  • edu.pl/NS
  • edu.pl/NSEC3PARAM
  • edu.pl/SOA

DNSKEY/DS/NSEC statusDNSKEY/DS/NSEC status

Secure (10)
  • ./DNSKEY (alg 8, id 20326)
  • ./DNSKEY (alg 8, id 30903)
  • ./DNSKEY (alg 8, id 5613)
  • edu.pl/DNSKEY (alg 8, id 24832)
  • edu.pl/DNSKEY (alg 8, id 30918)
  • edu.pl/DS (alg 8, id 24832)
  • edu.pl/DS (alg 8, id 30310)
  • pl/DNSKEY (alg 8, id 42684)
  • pl/DNSKEY (alg 8, id 48559)
  • pl/DS (alg 8, id 48559)
Non_existent (1)
  • edu.pl/DNSKEY (alg 8, id 30310)

Delegation statusDelegation status

Secure (2)
  • . to pl
  • pl to edu.pl

NoticesNotices

Errors (5)
  • edu.pl zone: The server(s) were not responsive to queries over TCP. (192.102.225.53)
  • edu.pl/DNSKEY: No response was received from the server over UDP (tried 12 times). (192.102.225.53, UDP_-_EDNS0_4096_D_KN)
  • edu.pl/SOA: No response was received from the server over TCP (tried 3 times). (192.102.225.53, TCP_-_EDNS0_4096_D_N)
  • pl zone: The server(s) were not responsive to queries over TCP. (192.102.225.53)
  • pl/DNSKEY: No response was received from the server over UDP (tried 12 times). (192.102.225.53, UDP_-_EDNS0_4096_D_KN)

DNSKEY legend

Full legend
SEP bit setSEP bit set
Revoke bit setRevoke bit set
Trust anchorTrust anchor
Download: png | svg
Warning JavaScript is required to make the graph below interactive.

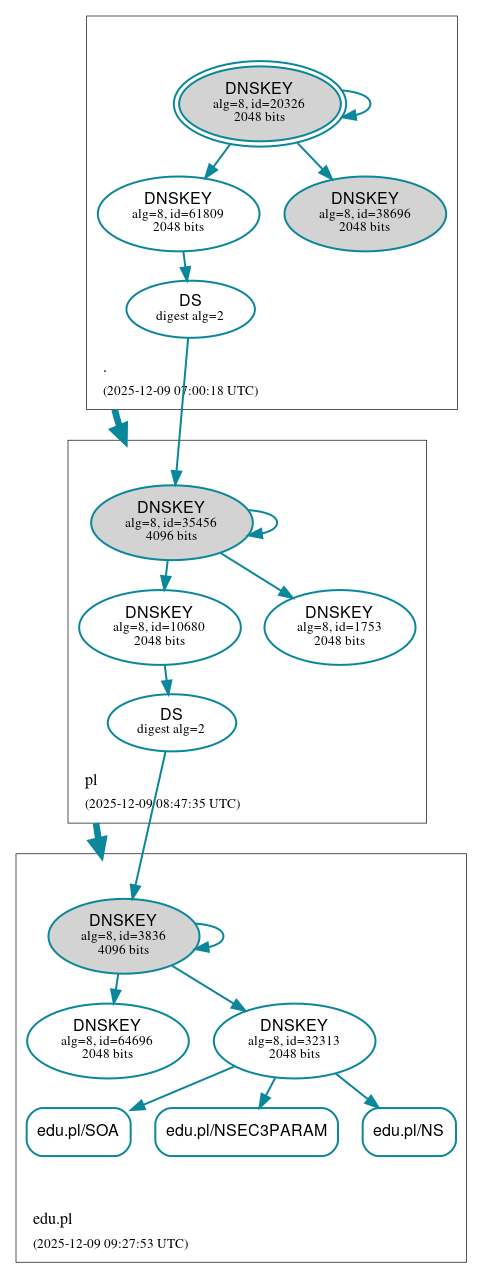

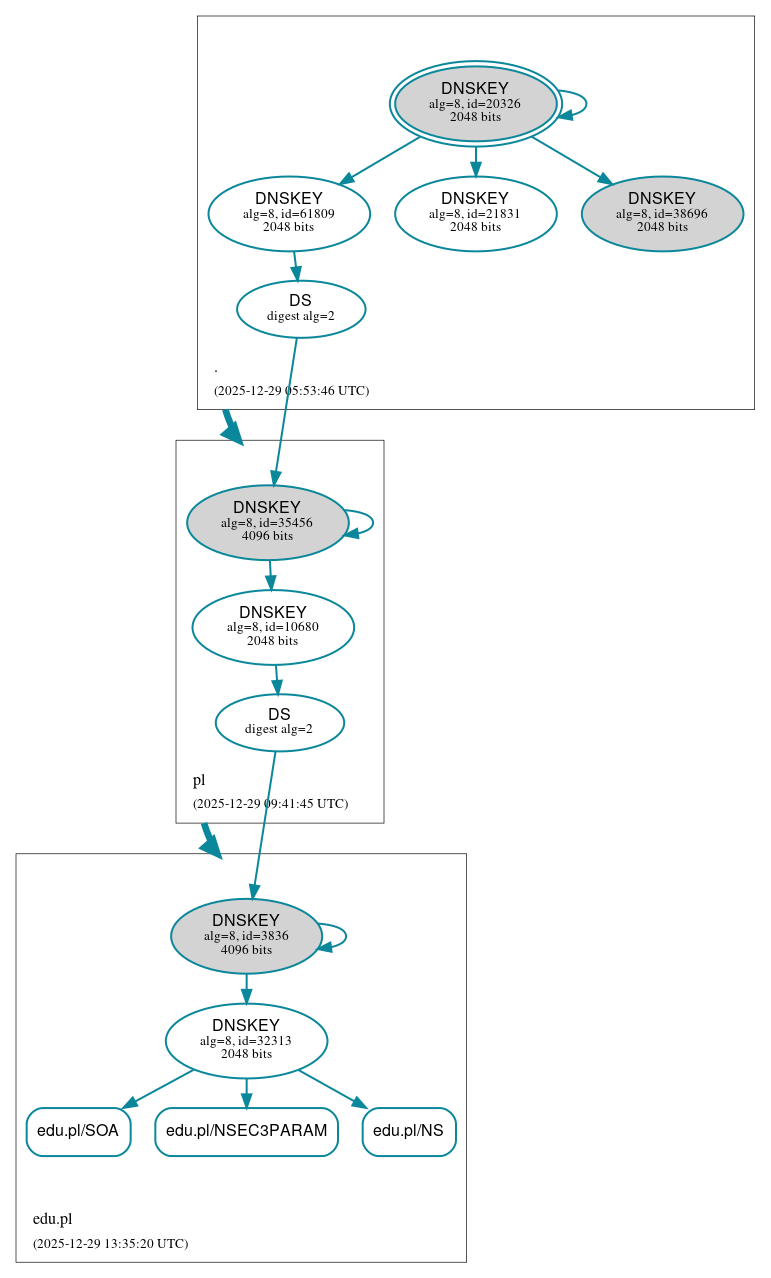

DNSSEC authentication graph
