DNSViz: A DNS visualization tool

dtra.mil

Updated: 2023-08-17 15:44:09 UTC (41 days ago) Update now
« Previous analysis | Next analysis »
DNSSEC options (hide)
  1. |?|
  2. |?|
  3. |?|
  4. |?|
  5. |?|
  6. |?|
  7. |?|
Notices
DNSSEC Authentication Chain

RRset statusRRset status

Secure (5)
  • dtra.mil/NS
  • dtra.mil/NSEC3PARAM
  • dtra.mil/NSEC3PARAM
  • dtra.mil/SOA
  • dtra.mil/TXT

DNSKEY/DS/NSEC statusDNSKEY/DS/NSEC status

Secure (10)
  • ./DNSKEY (alg 8, id 11019)
  • ./DNSKEY (alg 8, id 20326)
  • dtra.mil/DNSKEY (alg 8, id 31716)
  • dtra.mil/DNSKEY (alg 8, id 37819)
  • dtra.mil/DS (alg 8, id 37819)
  • dtra.mil/DS (alg 8, id 37819)
  • mil/DNSKEY (alg 8, id 14098)
  • mil/DNSKEY (alg 8, id 26446)
  • mil/DNSKEY (alg 8, id 62470)
  • mil/DS (alg 8, id 62470)
Non_existent (1)
  • dtra.mil/DNSKEY (alg 8, id 48108)

Delegation statusDelegation status

Secure (2)
  • . to mil
  • mil to dtra.mil

NoticesNotices

Warnings (4)
  • dtra.mil/DS (alg 8, id 37819): DNSSEC specification prohibits signing with DS records that use digest algorithm 1 (SHA-1).
  • dtra.mil/DS (alg 8, id 37819): DNSSEC specification prohibits signing with DS records that use digest algorithm 1 (SHA-1).
  • dtra.mil/DS (alg 8, id 37819): DS records with digest type 1 (SHA-1) are ignored when DS records with digest type 2 (SHA-256) exist in the same RRset.
  • dtra.mil/DS (alg 8, id 37819): DS records with digest type 1 (SHA-1) are ignored when DS records with digest type 2 (SHA-256) exist in the same RRset.

DNSKEY legend

Full legend
SEP bit setSEP bit set
Revoke bit setRevoke bit set
Trust anchorTrust anchor
Download: png | svg
Warning JavaScript is required to make the graph below interactive.

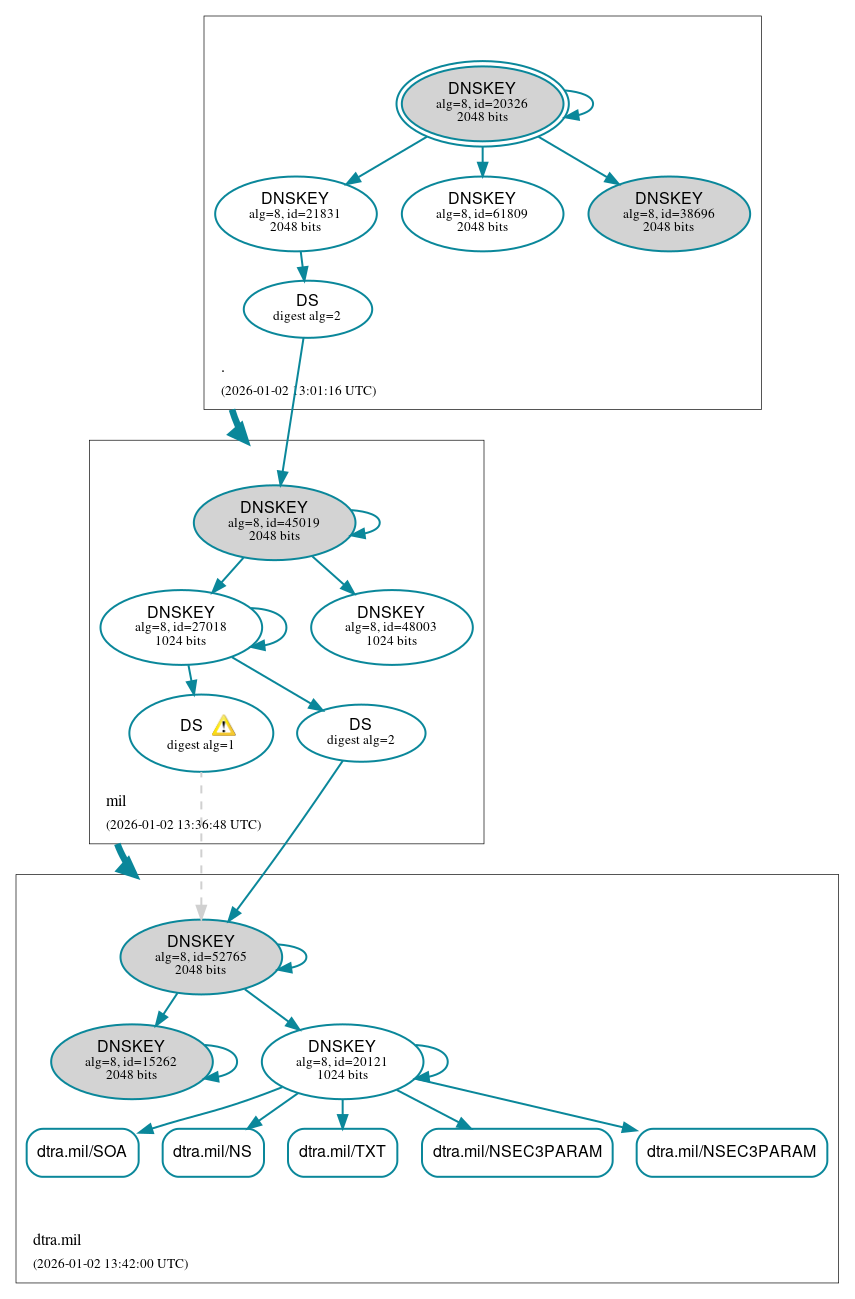

DNSSEC authentication graph
