DNSViz: A DNS visualization tool

dnsops.gov

Updated: 2021-09-24 06:30:00 UTC (114 days ago) Update now
« Previous analysis | Next analysis »
DNSSEC options (hide)
  1. |?|
  2. |?|
  3. |?|
  4. |?|
  5. |?|
  6. |?|
  7. |?|
Notices
DNSSEC Authentication Chain

RRset statusRRset status

Secure (5)
  • dnsops.gov/A
  • dnsops.gov/MX
  • dnsops.gov/NS
  • dnsops.gov/SOA
  • dnsops.gov/TXT

DNSKEY/DS/NSEC statusDNSKEY/DS/NSEC status

Secure (10)
  • ./DNSKEY (alg 8, id 14748)
  • ./DNSKEY (alg 8, id 20326)
  • ./DNSKEY (alg 8, id 26838)
  • dnsops.gov/DNSKEY (alg 13, id 27625)
  • dnsops.gov/DNSKEY (alg 13, id 35104)
  • dnsops.gov/DNSKEY (alg 13, id 3836)
  • dnsops.gov/DS (alg 13, id 3836)
  • gov/DNSKEY (alg 8, id 57735)
  • gov/DNSKEY (alg 8, id 7698)
  • gov/DS (alg 8, id 7698)

Delegation statusDelegation status

Secure (2)
  • . to gov
  • gov to dnsops.gov

NoticesNotices

Errors (6)
  • RRSIG dnsops.gov/DNSKEY alg 13, id 35104: The Signature Expiration field of the RRSIG RR (2020-08-22 16:28:55+00:00) is 397 days in the past.
  • RRSIG dnsops.gov/DNSKEY alg 13, id 35104: The Signature Expiration field of the RRSIG RR (2020-08-22 16:28:55+00:00) is 397 days in the past.
  • RRSIG dnsops.gov/DNSKEY alg 13, id 35104: The Signature Expiration field of the RRSIG RR (2020-08-22 16:28:55+00:00) is 397 days in the past.
  • dnsops.gov zone: The server(s) were not responsive to queries over UDP. (129.6.100.204, 2610:20:6005:100::204)
  • dnsops.gov/A: The UDP connection was refused (ECONNREFUSED). (129.6.100.204, 2610:20:6005:100::204, UDP_-_EDNS0_4096_D_KN)
  • dnsops.gov/NS: The UDP connection was refused (ECONNREFUSED). (129.6.100.204, 2610:20:6005:100::204, UDP_-_EDNS0_4096_D_KN)

DNSKEY legend

Full legend
SEP bit setSEP bit set
Revoke bit setRevoke bit set
Trust anchorTrust anchor
Download: png | svg
Warning JavaScript is required to make the graph below interactive.

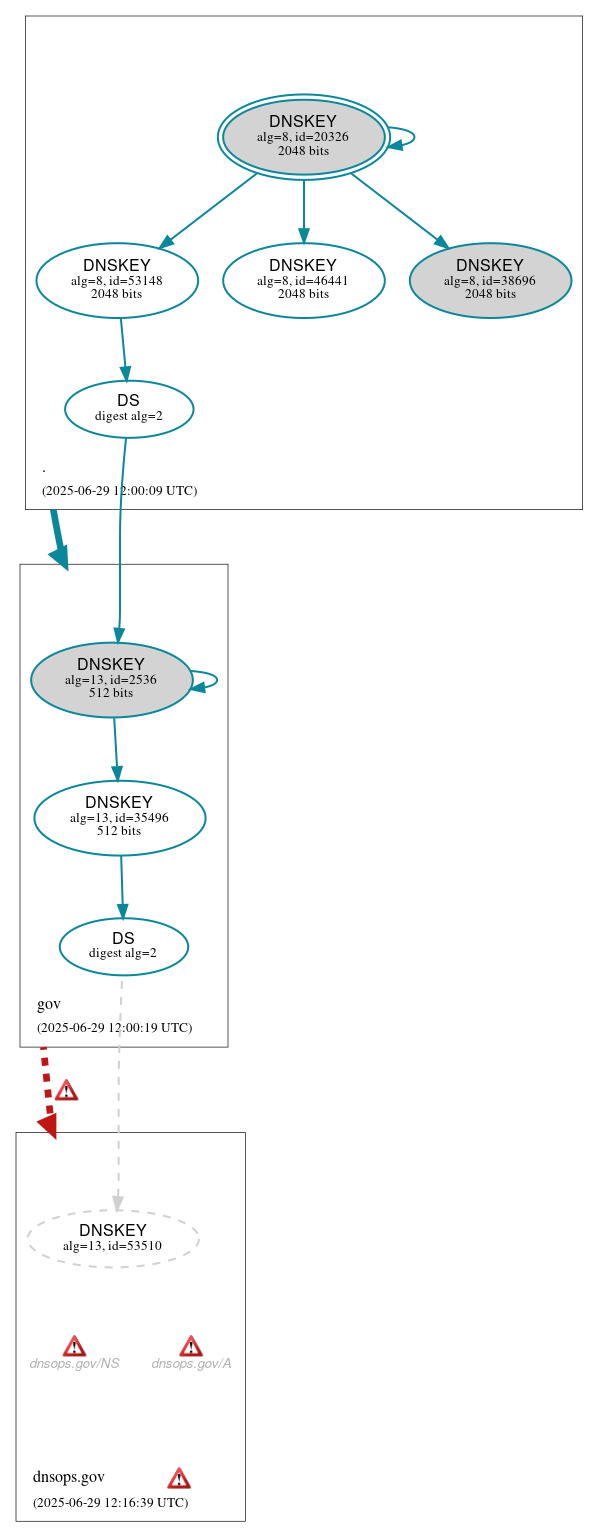

DNSSEC authentication graph
