DNSViz: A DNS visualization tool

dla.mil

Updated: 2024-05-13 04:21:05 UTC (30 days ago) Update now
« Previous analysis | Next analysis »
DNSSEC options (hide)
  1. |?|
  2. |?|
  3. |?|
  4. |?|
  5. |?|
  6. |?|
  7. |?|
  8. |?|
  9. |?|
Notices
DNSSEC Authentication Chain

RRset statusRRset status

Secure (6)
  • dla.mil/MX
  • dla.mil/NS
  • dla.mil/NSEC3PARAM
  • dla.mil/SOA
  • dla.mil/SOA
  • dla.mil/TXT

DNSKEY/DS/NSEC statusDNSKEY/DS/NSEC status

Secure (11)
  • ./DNSKEY (alg 8, id 20326)
  • ./DNSKEY (alg 8, id 5613)
  • dla.mil/DNSKEY (alg 8, id 20047)
  • dla.mil/DNSKEY (alg 8, id 55492)
  • dla.mil/DNSKEY (alg 8, id 58143)
  • dla.mil/DS (alg 8, id 20047)
  • dla.mil/DS (alg 8, id 20047)
  • mil/DNSKEY (alg 8, id 16801)
  • mil/DNSKEY (alg 8, id 25501)
  • mil/DNSKEY (alg 8, id 45154)
  • mil/DS (alg 8, id 16801)

Delegation statusDelegation status

Secure (2)
  • . to mil
  • mil to dla.mil

NoticesNotices

Errors (7)
  • dla.mil/DS (alg 8, id 20047): DNSSEC specification prohibits signing with DS records that use digest algorithm 1 (SHA-1). See RFC 8624, Sec. 3.2.
  • dla.mil/DS (alg 8, id 20047): DNSSEC specification prohibits signing with DS records that use digest algorithm 1 (SHA-1). See RFC 8624, Sec. 3.2.
  • mil/DNSKEY: No response was received from the server over UDP (tried 4 times). See RFC 1035, Sec. 4.2. (199.252.162.234, UDP_-_EDNS0_512_D_KN)
  • f9mnayqpk1.dla.mil/A has errors; select the "Denial of existence" DNSSEC option to see them.
  • dla.mil/A has errors; select the "Denial of existence" DNSSEC option to see them.
  • dla.mil/AAAA has errors; select the "Denial of existence" DNSSEC option to see them.
  • dla.mil/CNAME has errors; select the "Denial of existence" DNSSEC option to see them.
Warnings (6)
  • dla.mil/DS (alg 8, id 20047): DS records with digest type 1 (SHA-1) are ignored when DS records with digest type 2 (SHA-256) exist in the same RRset. See RFC 4509, Sec. 3.
  • dla.mil/DS (alg 8, id 20047): DS records with digest type 1 (SHA-1) are ignored when DS records with digest type 2 (SHA-256) exist in the same RRset. See RFC 4509, Sec. 3.
  • f9mnayqpk1.dla.mil/A has warnings; select the "Denial of existence" DNSSEC option to see them.
  • dla.mil/A has warnings; select the "Denial of existence" DNSSEC option to see them.
  • dla.mil/AAAA has warnings; select the "Denial of existence" DNSSEC option to see them.
  • dla.mil/CNAME has warnings; select the "Denial of existence" DNSSEC option to see them.

DNSKEY legend

Full legend
SEP bit setSEP bit set
Revoke bit setRevoke bit set
Trust anchorTrust anchor
Download: png | svg
Warning JavaScript is required to make the graph below interactive.

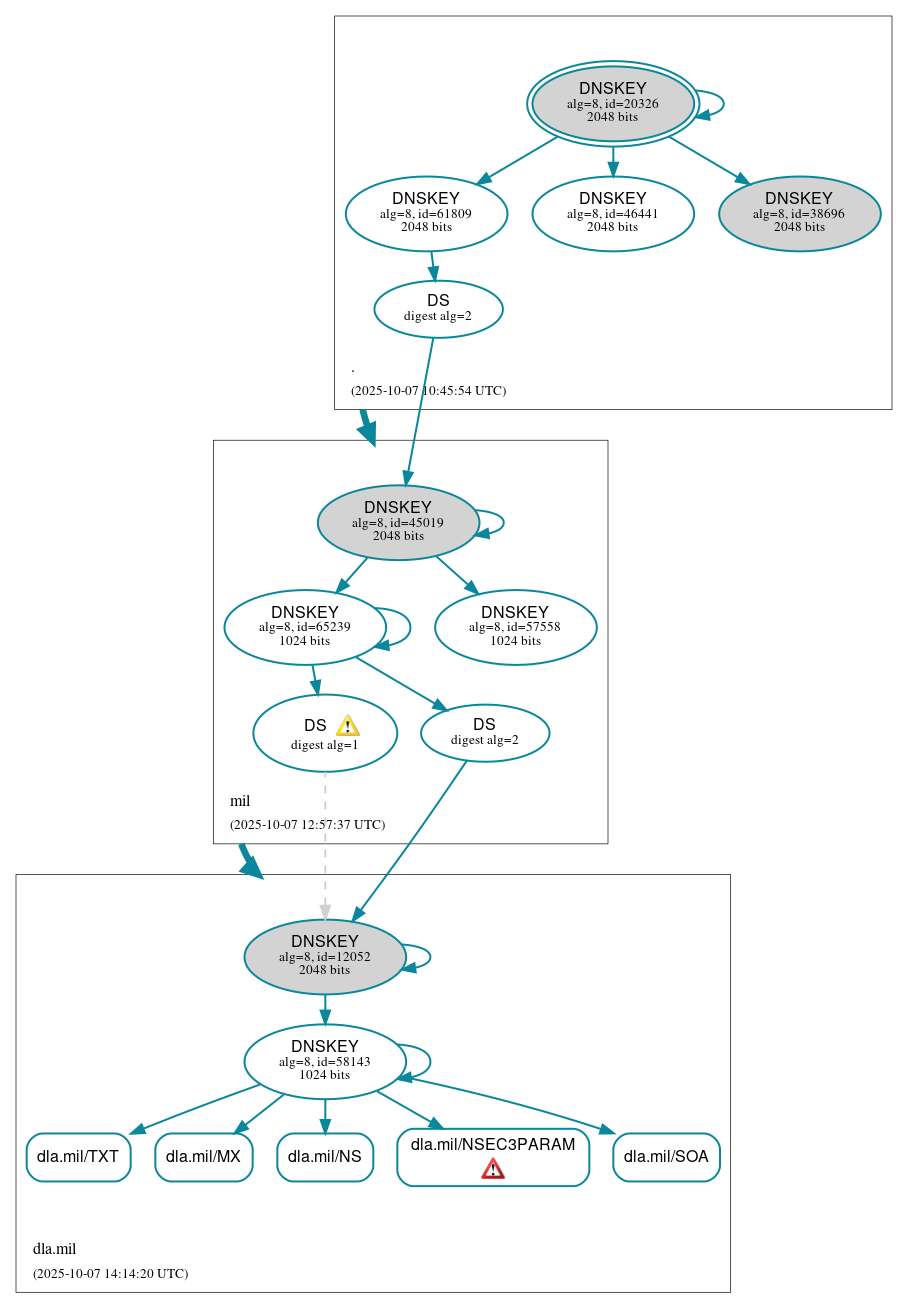

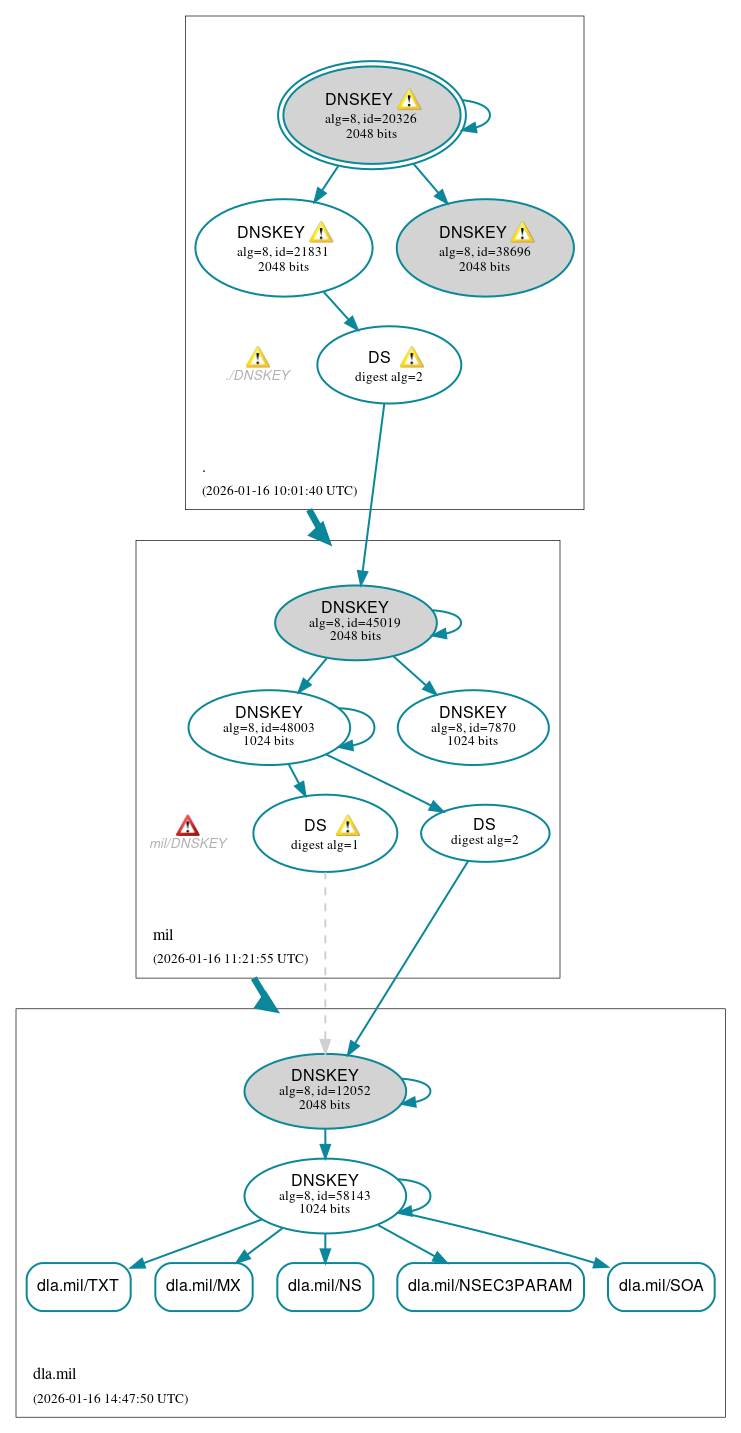

DNSSEC authentication graph
