DNSViz: A DNS visualization tool

dia.mil

Updated: 2024-02-21 18:11:10 UTC (64 days ago) Update now
« Previous analysis | Next analysis »
DNSSEC options (hide)
  1. |?|
  2. |?|
  3. |?|
  4. |?|
  5. |?|
  6. |?|
  7. |?|
Notices
DNSSEC Authentication Chain

RRset statusRRset status

Secure (5)
  • dia.mil/MX
  • dia.mil/NS
  • dia.mil/NSEC3PARAM
  • dia.mil/SOA
  • dia.mil/TXT

DNSKEY/DS/NSEC statusDNSKEY/DS/NSEC status

Secure (12)
  • ./DNSKEY (alg 8, id 20326)
  • ./DNSKEY (alg 8, id 30903)
  • dia.mil/DNSKEY (alg 8, id 12786)
  • dia.mil/DNSKEY (alg 8, id 13101)
  • dia.mil/DNSKEY (alg 8, id 21555)
  • dia.mil/DNSKEY (alg 8, id 40450)
  • dia.mil/DS (alg 8, id 40450)
  • dia.mil/DS (alg 8, id 40450)
  • mil/DNSKEY (alg 8, id 16801)
  • mil/DNSKEY (alg 8, id 29059)
  • mil/DNSKEY (alg 8, id 49404)
  • mil/DS (alg 8, id 16801)

Delegation statusDelegation status

Secure (2)
  • . to mil
  • mil to dia.mil

NoticesNotices

Warnings (7)
  • dia.mil/DS (alg 8, id 40450): DNSSEC specification prohibits signing with DS records that use digest algorithm 1 (SHA-1).
  • dia.mil/DS (alg 8, id 40450): DNSSEC specification prohibits signing with DS records that use digest algorithm 1 (SHA-1).
  • dia.mil/DS (alg 8, id 40450): DS records with digest type 1 (SHA-1) are ignored when DS records with digest type 2 (SHA-256) exist in the same RRset.
  • dia.mil/DS (alg 8, id 40450): DS records with digest type 1 (SHA-1) are ignored when DS records with digest type 2 (SHA-256) exist in the same RRset.
  • mil/DNSKEY (alg 8, id 16801): No response was received until the UDP payload size was decreased, indicating that the server might be attempting to send a payload that exceeds the path maximum transmission unit (PMTU) size. (199.252.162.234, 2608:140:c:157::234, UDP_-_EDNS0_4096_D_KN)
  • mil/DNSKEY (alg 8, id 29059): No response was received until the UDP payload size was decreased, indicating that the server might be attempting to send a payload that exceeds the path maximum transmission unit (PMTU) size. (199.252.162.234, 2608:140:c:157::234, UDP_-_EDNS0_4096_D_KN)
  • mil/DNSKEY (alg 8, id 49404): No response was received until the UDP payload size was decreased, indicating that the server might be attempting to send a payload that exceeds the path maximum transmission unit (PMTU) size. (199.252.162.234, 2608:140:c:157::234, UDP_-_EDNS0_4096_D_KN)

DNSKEY legend

Full legend
SEP bit setSEP bit set
Revoke bit setRevoke bit set
Trust anchorTrust anchor
Download: png | svg
Warning JavaScript is required to make the graph below interactive.

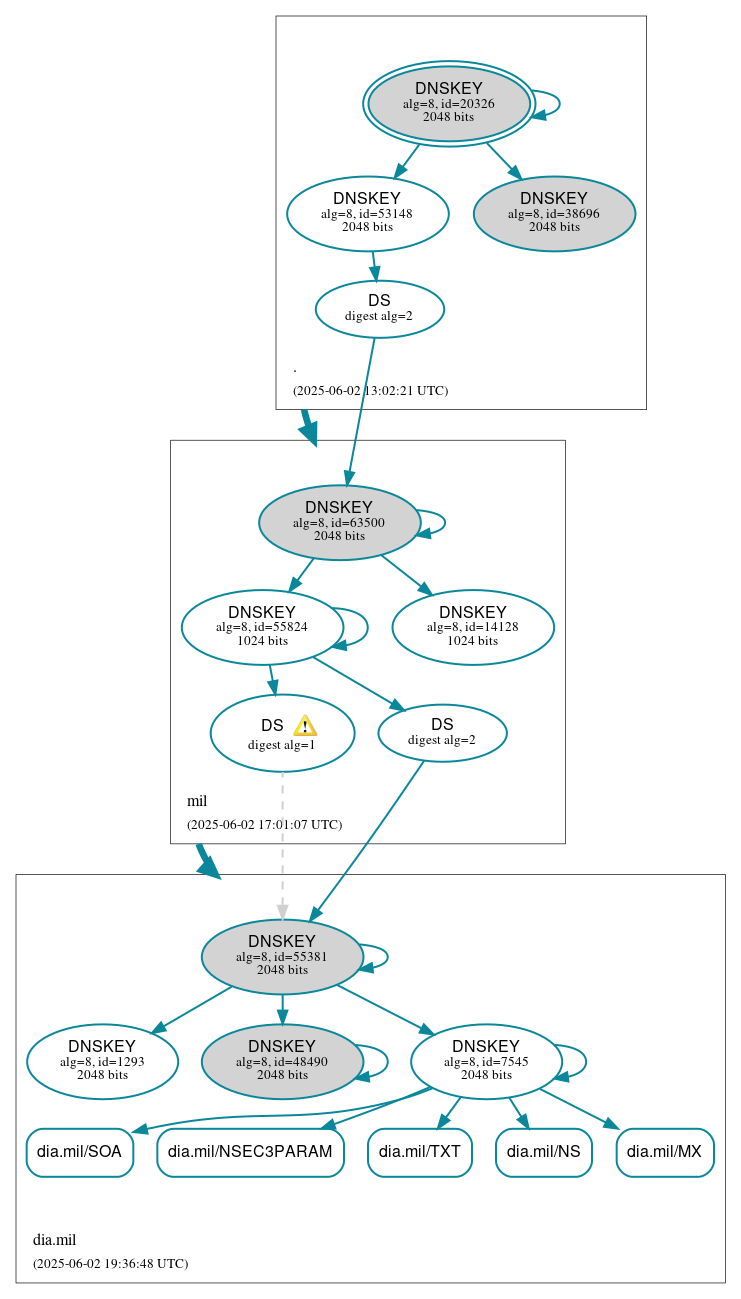

DNSSEC authentication graph
