DNSViz: A DNS visualization tool

colorado.edu

Updated: 2020-10-30 16:39:47 UTC (233 days ago) Update now
« Previous analysis | Next analysis »
DNSSEC options (hide)
  1. |?|
  2. |?|
  3. |?|
  4. |?|
  5. |?|
  6. |?|
  7. |?|
Notices
DNSSEC Authentication Chain

RRset statusRRset status

Insecure (5)
  • colorado.edu/A
  • colorado.edu/MX
  • colorado.edu/NS
  • colorado.edu/SOA
  • colorado.edu/TXT
Secure (2)
  • edu/SOA
  • edu/SOA

DNSKEY/DS/NSEC statusDNSKEY/DS/NSEC status

Secure (6)
  • ./DNSKEY (alg 8, id 20326)
  • ./DNSKEY (alg 8, id 26116)
  • NSEC3 proving non-existence of colorado.edu/DS
  • edu/DNSKEY (alg 8, id 28065)
  • edu/DNSKEY (alg 8, id 4250)
  • edu/DS (alg 8, id 28065)

Delegation statusDelegation status

Insecure (1)
  • edu to colorado.edu
Secure (1)
  • . to edu

NoticesNotices

Errors (1)
  • edu zone: The server(s) were not responsive to queries over UDP. (2001:500:856e::30, 2001:502:1ca1::30, 2001:503:83eb::30, 2001:503:a83e::2:30)

DNSKEY legend

Full legend
SEP bit setSEP bit set
Revoke bit setRevoke bit set
Trust anchorTrust anchor
Download: png | svg
Warning JavaScript is required to make the graph below interactive.

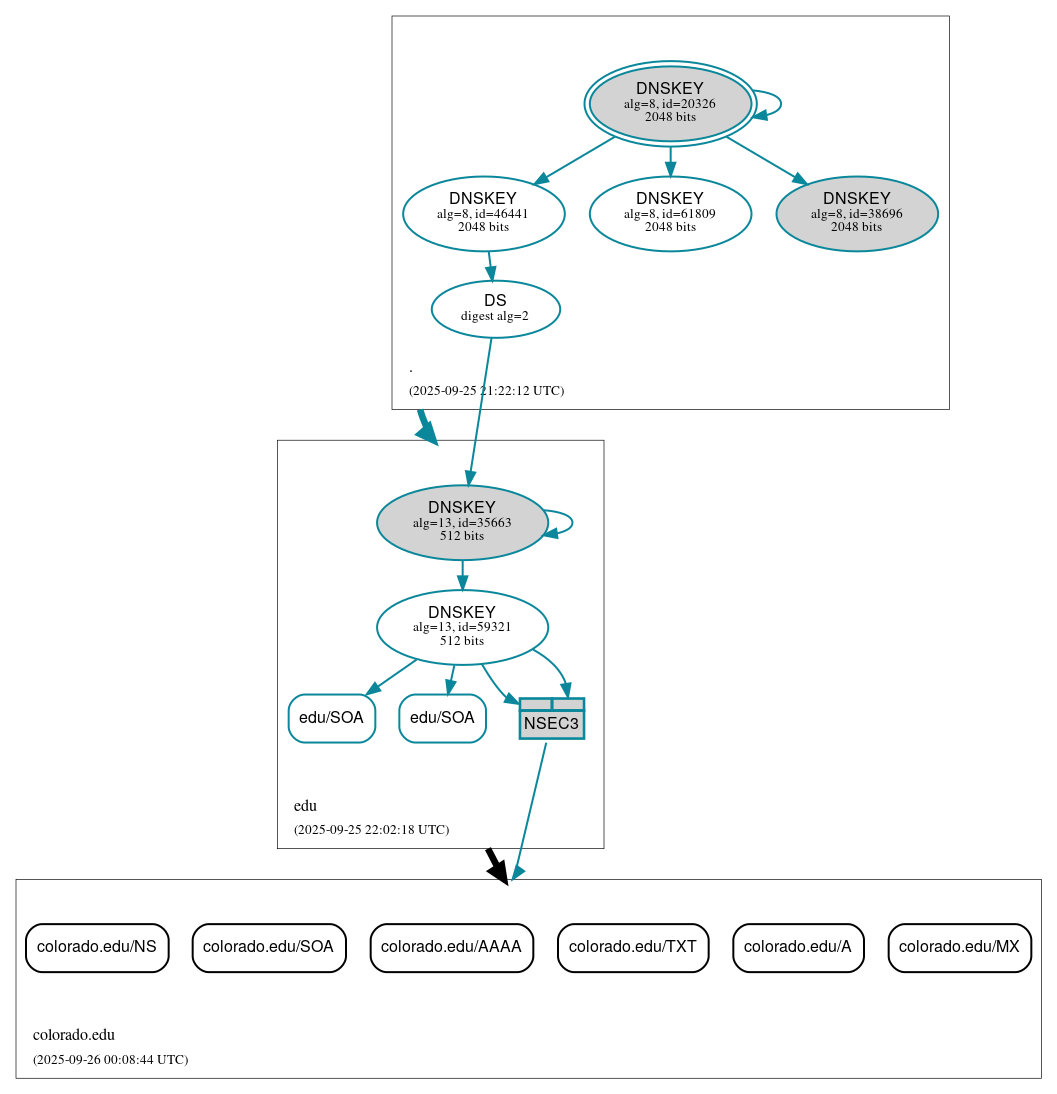

DNSSEC authentication graph
