DNSViz: A DNS visualization tool

cio.gov

Updated: 2020-08-14 16:07:08 UTC (409 days ago) Update now
« Previous analysis | Next analysis »
DNSSEC options (hide)
  1. |?|
  2. |?|
  3. |?|
  4. |?|
  5. |?|
  6. |?|
  7. |?|
Notices
DNSSEC Authentication Chain

RRset statusRRset status

Secure (5)
  • cio.gov/A
  • cio.gov/MX
  • cio.gov/NS
  • cio.gov/SOA
  • cio.gov/TXT

DNSKEY/DS/NSEC statusDNSKEY/DS/NSEC status

Secure (11)
  • ./DNSKEY (alg 8, id 20326)
  • ./DNSKEY (alg 8, id 46594)
  • cio.gov/DNSKEY (alg 7, id 17061)
  • cio.gov/DNSKEY (alg 7, id 18857)
  • cio.gov/DNSKEY (alg 7, id 41897)
  • cio.gov/DS (alg 7, id 17061)
  • cio.gov/DS (alg 7, id 17061)
  • gov/DNSKEY (alg 8, id 26665)
  • gov/DNSKEY (alg 8, id 7698)
  • gov/DS (alg 8, id 7698)
  • gov/DS (alg 8, id 7698)

Delegation statusDelegation status

Secure (2)
  • . to gov
  • gov to cio.gov

NoticesNotices

Errors (3)
  • RRSIG cio.gov/A alg 7, id 18857: The Signature Expiration field of the RRSIG RR (2020-08-14 15:35:48+00:00) is 31 minutes in the past.
  • RRSIG cio.gov/SOA alg 7, id 18857: The Signature Expiration field of the RRSIG RR (2020-08-14 15:35:48+00:00) is 31 minutes in the past.
  • RRSIG cio.gov/TXT alg 7, id 18857: The Signature Expiration field of the RRSIG RR (2020-08-14 15:35:48+00:00) is 31 minutes in the past.
Warnings (21)
  • RRSIG cio.gov/A alg 7, id 18857: DNSSEC specification recommends not signing with DNSSEC algorithm 7 (RSASHA1NSEC3SHA1).
  • RRSIG cio.gov/A alg 7, id 18857: DNSSEC specification recommends not signing with DNSSEC algorithm 7 (RSASHA1NSEC3SHA1).
  • RRSIG cio.gov/DNSKEY alg 7, id 17061: DNSSEC specification recommends not signing with DNSSEC algorithm 7 (RSASHA1NSEC3SHA1).
  • RRSIG cio.gov/DNSKEY alg 7, id 17061: DNSSEC specification recommends not signing with DNSSEC algorithm 7 (RSASHA1NSEC3SHA1).
  • RRSIG cio.gov/DNSKEY alg 7, id 17061: DNSSEC specification recommends not signing with DNSSEC algorithm 7 (RSASHA1NSEC3SHA1).
  • RRSIG cio.gov/MX alg 7, id 18857: DNSSEC specification recommends not signing with DNSSEC algorithm 7 (RSASHA1NSEC3SHA1).
  • RRSIG cio.gov/NS alg 7, id 18857: DNSSEC specification recommends not signing with DNSSEC algorithm 7 (RSASHA1NSEC3SHA1).
  • RRSIG cio.gov/SOA alg 7, id 18857: DNSSEC specification recommends not signing with DNSSEC algorithm 7 (RSASHA1NSEC3SHA1).
  • RRSIG cio.gov/SOA alg 7, id 18857: DNSSEC specification recommends not signing with DNSSEC algorithm 7 (RSASHA1NSEC3SHA1).
  • RRSIG cio.gov/TXT alg 7, id 18857: DNSSEC specification recommends not signing with DNSSEC algorithm 7 (RSASHA1NSEC3SHA1).
  • RRSIG cio.gov/TXT alg 7, id 18857: DNSSEC specification recommends not signing with DNSSEC algorithm 7 (RSASHA1NSEC3SHA1).
  • cio.gov/DS (alg 7, id 17061): DNSSEC specification prohibits signing with DS records that use digest algorithm 1 (SHA-1).
  • cio.gov/DS (alg 7, id 17061): DNSSEC specification prohibits signing with DS records that use digest algorithm 1 (SHA-1).
  • cio.gov/DS (alg 7, id 17061): DS records with digest type 1 (SHA-1) are ignored when DS records with digest type 2 (SHA-256) exist in the same RRset.
  • cio.gov/DS (alg 7, id 17061): DS records with digest type 1 (SHA-1) are ignored when DS records with digest type 2 (SHA-256) exist in the same RRset.
  • gov to cio.gov: The following NS name(s) were found in the authoritative NS RRset, but not in the delegation NS RRset (i.e., in the gov zone): a12-64.akam.net, a5-64.akam.net, a3-67.akam.net, a20-65.akam.net, a1-61.akam.net, a22-66.akam.net
  • gov to cio.gov: The following NS name(s) were found in the delegation NS RRset (i.e., in the gov zone), but not in the authoritative NS RRset: asia9.akam.net, ns1-145.akam.net, ns1-176.akam.net, use6.akam.net, usw1.akam.net, usw5.akam.net, usw6.akam.net, zc.akam.net
  • gov/DS (alg 8, id 7698): DNSSEC specification prohibits signing with DS records that use digest algorithm 1 (SHA-1).
  • gov/DS (alg 8, id 7698): DNSSEC specification prohibits signing with DS records that use digest algorithm 1 (SHA-1).
  • gov/DS (alg 8, id 7698): DS records with digest type 1 (SHA-1) are ignored when DS records with digest type 2 (SHA-256) exist in the same RRset.
  • gov/DS (alg 8, id 7698): DS records with digest type 1 (SHA-1) are ignored when DS records with digest type 2 (SHA-256) exist in the same RRset.

DNSKEY legend

Full legend
SEP bit setSEP bit set
Revoke bit setRevoke bit set
Trust anchorTrust anchor
Download: png | svg
Warning JavaScript is required to make the graph below interactive.

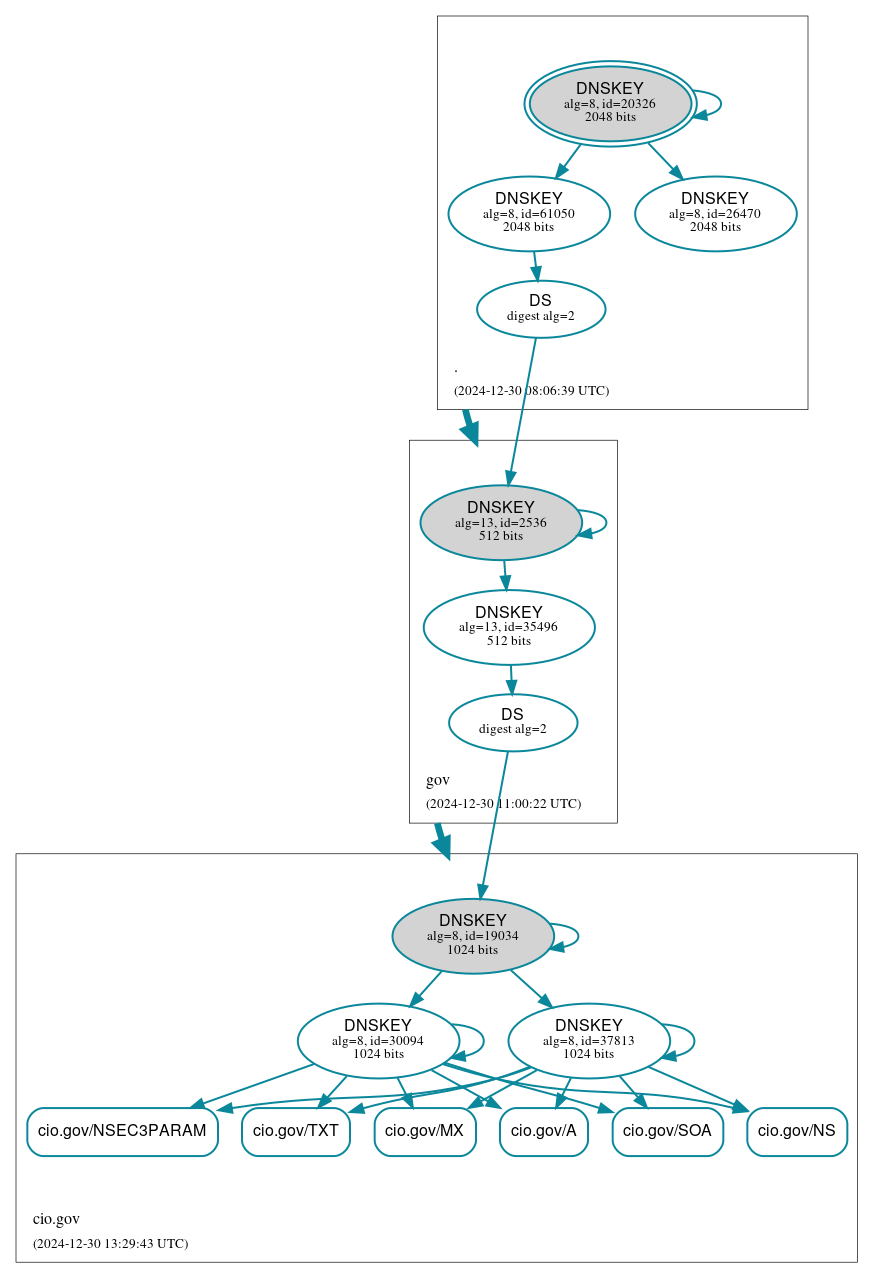

DNSSEC authentication graph
