DNSViz: A DNS visualization tool

cftc.gov

Updated: 2020-12-16 16:16:32 UTC (187 days ago) Update now
« Previous analysis | Next analysis »
DNSSEC options (hide)
  1. |?|
  2. |?|
  3. |?|
  4. |?|
  5. |?|
  6. |?|
  7. |?|
Notices
DNSSEC Authentication Chain

RRset statusRRset status

Secure (5)
  • cftc.gov/A
  • cftc.gov/MX
  • cftc.gov/NS
  • cftc.gov/SOA
  • cftc.gov/TXT

DNSKEY/DS/NSEC statusDNSKEY/DS/NSEC status

Secure (14)
  • ./DNSKEY (alg 8, id 20326)
  • ./DNSKEY (alg 8, id 26116)
  • cftc.gov/DNSKEY (alg 7, id 16701)
  • cftc.gov/DNSKEY (alg 7, id 33933)
  • cftc.gov/DNSKEY (alg 7, id 5160)
  • cftc.gov/DNSKEY (alg 7, id 60924)
  • cftc.gov/DS (alg 7, id 16701)
  • cftc.gov/DS (alg 7, id 16701)
  • cftc.gov/DS (alg 7, id 33933)
  • cftc.gov/DS (alg 7, id 33933)
  • gov/DNSKEY (alg 8, id 15489)
  • gov/DNSKEY (alg 8, id 7698)
  • gov/DS (alg 8, id 7698)
  • gov/DS (alg 8, id 7698)

Delegation statusDelegation status

Secure (2)
  • . to gov
  • gov to cftc.gov

NoticesNotices

Warnings (25)
  • RRSIG cftc.gov/A alg 7, id 5160: DNSSEC specification recommends not signing with DNSSEC algorithm 7 (RSASHA1NSEC3SHA1).
  • RRSIG cftc.gov/DNSKEY alg 7, id 33933: DNSSEC specification recommends not signing with DNSSEC algorithm 7 (RSASHA1NSEC3SHA1).
  • RRSIG cftc.gov/DNSKEY alg 7, id 33933: DNSSEC specification recommends not signing with DNSSEC algorithm 7 (RSASHA1NSEC3SHA1).
  • RRSIG cftc.gov/DNSKEY alg 7, id 33933: DNSSEC specification recommends not signing with DNSSEC algorithm 7 (RSASHA1NSEC3SHA1).
  • RRSIG cftc.gov/DNSKEY alg 7, id 33933: DNSSEC specification recommends not signing with DNSSEC algorithm 7 (RSASHA1NSEC3SHA1).
  • RRSIG cftc.gov/DNSKEY alg 7, id 5160: DNSSEC specification recommends not signing with DNSSEC algorithm 7 (RSASHA1NSEC3SHA1).
  • RRSIG cftc.gov/DNSKEY alg 7, id 5160: DNSSEC specification recommends not signing with DNSSEC algorithm 7 (RSASHA1NSEC3SHA1).
  • RRSIG cftc.gov/DNSKEY alg 7, id 5160: DNSSEC specification recommends not signing with DNSSEC algorithm 7 (RSASHA1NSEC3SHA1).
  • RRSIG cftc.gov/DNSKEY alg 7, id 5160: DNSSEC specification recommends not signing with DNSSEC algorithm 7 (RSASHA1NSEC3SHA1).
  • RRSIG cftc.gov/MX alg 7, id 5160: DNSSEC specification recommends not signing with DNSSEC algorithm 7 (RSASHA1NSEC3SHA1).
  • RRSIG cftc.gov/NS alg 7, id 5160: DNSSEC specification recommends not signing with DNSSEC algorithm 7 (RSASHA1NSEC3SHA1).
  • RRSIG cftc.gov/SOA alg 7, id 5160: DNSSEC specification recommends not signing with DNSSEC algorithm 7 (RSASHA1NSEC3SHA1).
  • RRSIG cftc.gov/TXT alg 7, id 5160: DNSSEC specification recommends not signing with DNSSEC algorithm 7 (RSASHA1NSEC3SHA1).
  • cftc.gov/DS (alg 7, id 16701): DNSSEC specification prohibits signing with DS records that use digest algorithm 1 (SHA-1).
  • cftc.gov/DS (alg 7, id 16701): DNSSEC specification prohibits signing with DS records that use digest algorithm 1 (SHA-1).
  • cftc.gov/DS (alg 7, id 16701): DS records with digest type 1 (SHA-1) are ignored when DS records with digest type 2 (SHA-256) exist in the same RRset.
  • cftc.gov/DS (alg 7, id 16701): DS records with digest type 1 (SHA-1) are ignored when DS records with digest type 2 (SHA-256) exist in the same RRset.
  • cftc.gov/DS (alg 7, id 33933): DNSSEC specification prohibits signing with DS records that use digest algorithm 1 (SHA-1).
  • cftc.gov/DS (alg 7, id 33933): DNSSEC specification prohibits signing with DS records that use digest algorithm 1 (SHA-1).
  • cftc.gov/DS (alg 7, id 33933): DS records with digest type 1 (SHA-1) are ignored when DS records with digest type 2 (SHA-256) exist in the same RRset.
  • cftc.gov/DS (alg 7, id 33933): DS records with digest type 1 (SHA-1) are ignored when DS records with digest type 2 (SHA-256) exist in the same RRset.
  • gov/DS (alg 8, id 7698): DNSSEC specification prohibits signing with DS records that use digest algorithm 1 (SHA-1).
  • gov/DS (alg 8, id 7698): DNSSEC specification prohibits signing with DS records that use digest algorithm 1 (SHA-1).
  • gov/DS (alg 8, id 7698): DS records with digest type 1 (SHA-1) are ignored when DS records with digest type 2 (SHA-256) exist in the same RRset.
  • gov/DS (alg 8, id 7698): DS records with digest type 1 (SHA-1) are ignored when DS records with digest type 2 (SHA-256) exist in the same RRset.

DNSKEY legend

Full legend
SEP bit setSEP bit set
Revoke bit setRevoke bit set
Trust anchorTrust anchor
Download: png | svg
Warning JavaScript is required to make the graph below interactive.

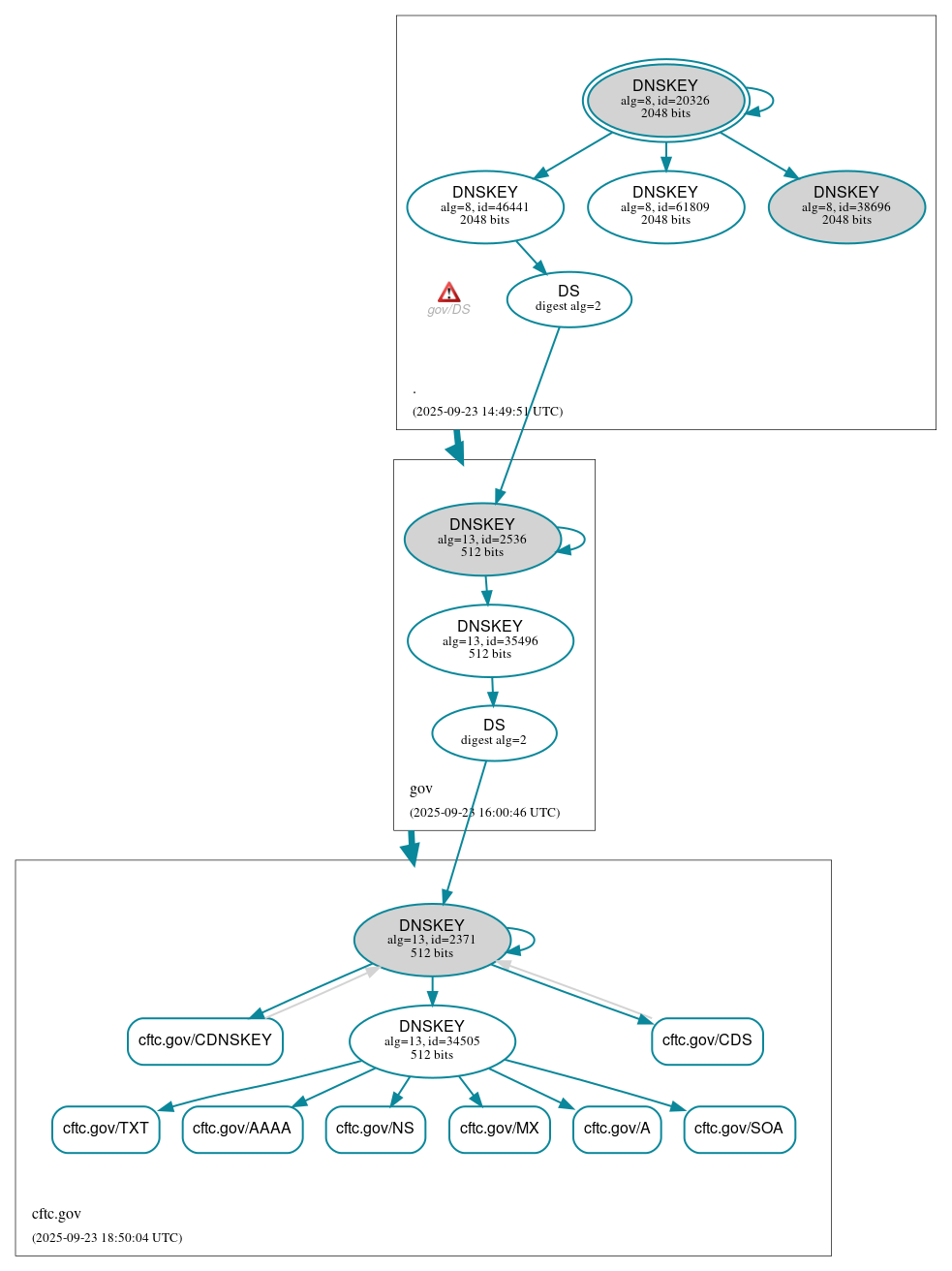

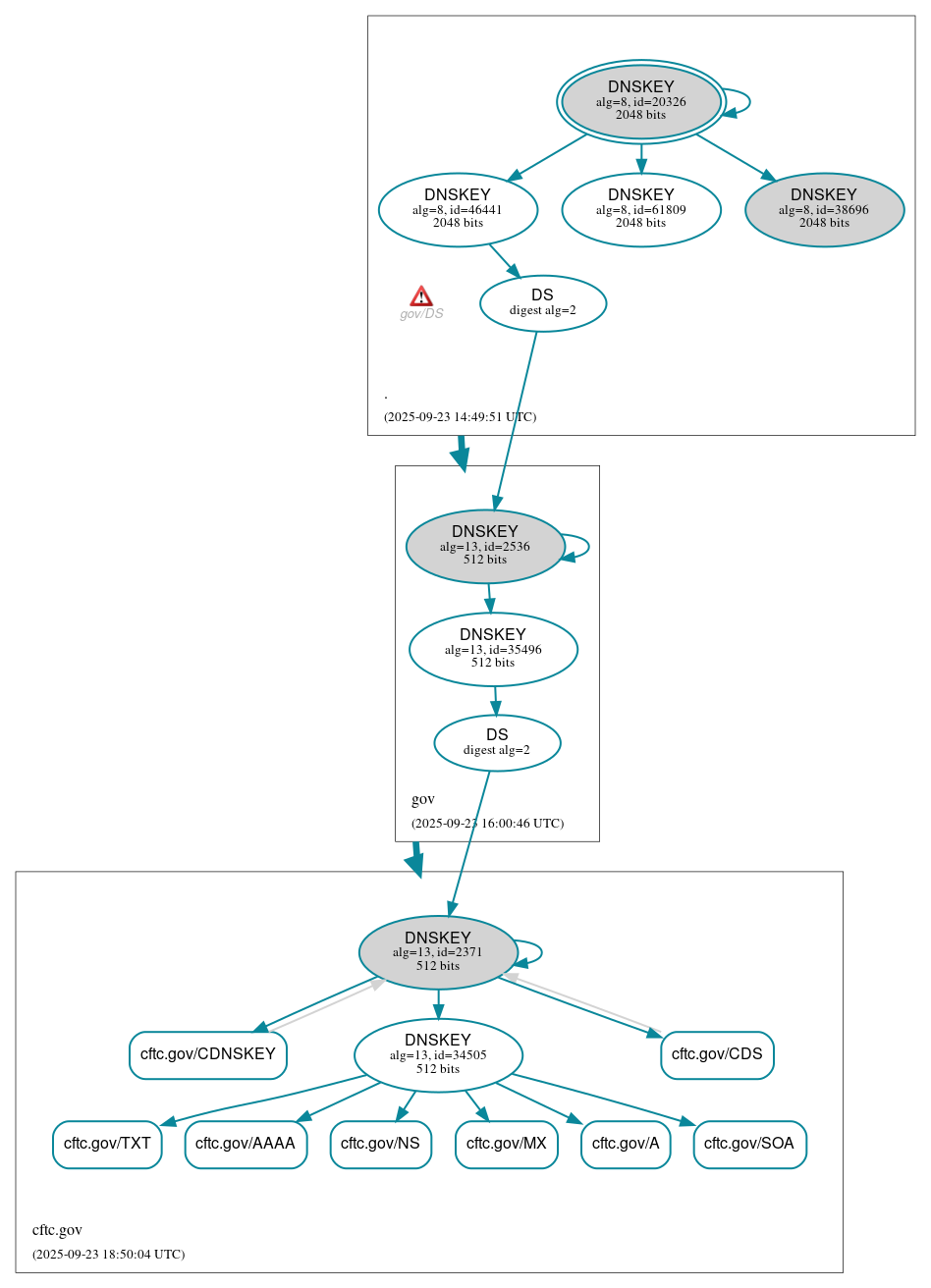

DNSSEC authentication graph
