DNSViz: A DNS visualization tool

calyxinstitute.org

Updated: 2024-11-04 04:25:51 UTC (7 days ago) Update now
« Previous analysis | Next analysis »
DNSSEC options (hide)
  1. |?|
  2. |?|
  3. |?|
  4. |?|
  5. |?|
  6. |?|
  7. |?|
  8. |?|
  9. |?|
  10. |?|
Notices
DNSSEC Authentication Chain

RRset statusRRset status

Secure (5)
  • calyxinstitute.org/A
  • calyxinstitute.org/MX
  • calyxinstitute.org/NS
  • calyxinstitute.org/SOA
  • calyxinstitute.org/TXT

DNSKEY/DS/NSEC statusDNSKEY/DS/NSEC status

Secure (10)
  • ./DNSKEY (alg 8, id 20326)
  • ./DNSKEY (alg 8, id 61050)
  • calyxinstitute.org/DNSKEY (alg 8, id 26538)
  • calyxinstitute.org/DNSKEY (alg 8, id 43011)
  • calyxinstitute.org/DNSKEY (alg 8, id 7504)
  • calyxinstitute.org/DS (alg 8, id 7504)
  • org/DNSKEY (alg 8, id 15678)
  • org/DNSKEY (alg 8, id 26974)
  • org/DNSKEY (alg 8, id 42393)
  • org/DS (alg 8, id 26974)

Delegation statusDelegation status

Secure (2)
  • . to org
  • org to calyxinstitute.org

NoticesNotices

Errors (3)
  • calyxinstitute.org zone: The server(s) were not responsive to queries over UDP. See RFC 1035, Sec. 4.2. (82.94.251.231)
  • calyxinstitute.org/A: No response was received from the server over UDP (tried 12 times). See RFC 1035, Sec. 4.2. (82.94.251.231, UDP_-_NOEDNS_)
  • calyxinstitute.org/NS: No response was received from the server over UDP (tried 12 times). See RFC 1035, Sec. 4.2. (82.94.251.231, UDP_-_NOEDNS_)

DNSKEY legend

Full legend
SEP bit setSEP bit set
Revoke bit setRevoke bit set
Trust anchorTrust anchor
Download: png | svg
Warning JavaScript is required to make the graph below interactive.

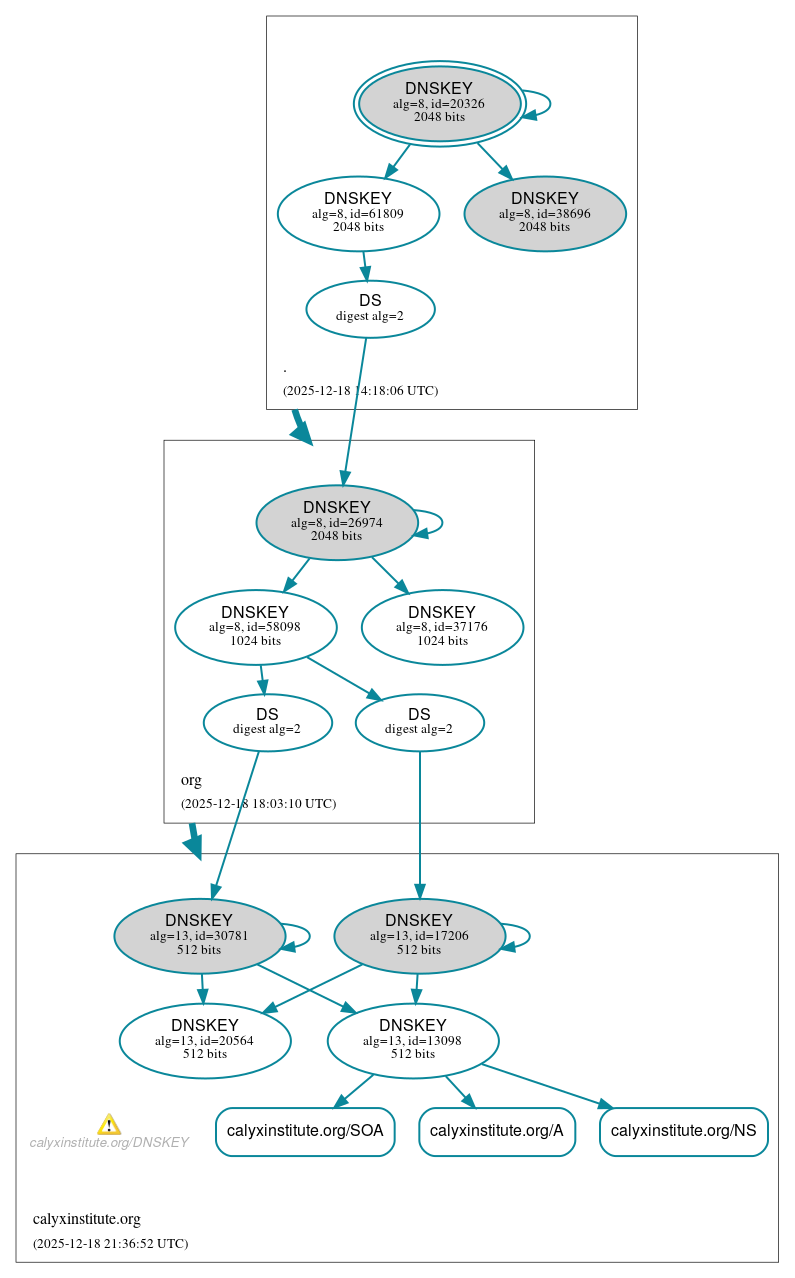

DNSSEC authentication graph
