DNSViz: A DNS visualization tool

bncr.fi.cr

Updated: 2025-04-02 14:54:13 UTC (24 days ago) Update now
« Previous analysis | Next analysis »
DNSSEC options (hide)
  1. |?|
  2. |?|
  3. |?|
  4. |?|
  5. |?|
  6. |?|
  7. |?|
  8. |?|
  9. |?|
  10. |?|
Notices
DNSSEC Authentication Chain

RRset statusRRset status

Secure (5)
  • bncr.fi.cr/MX
  • bncr.fi.cr/NS
  • bncr.fi.cr/NSEC3PARAM
  • bncr.fi.cr/SOA
  • bncr.fi.cr/TXT

DNSKEY/DS/NSEC statusDNSKEY/DS/NSEC status

Secure (13)
  • ./DNSKEY (alg 8, id 20326)
  • ./DNSKEY (alg 8, id 26470)
  • ./DNSKEY (alg 8, id 38696)
  • ./DNSKEY (alg 8, id 53148)
  • bncr.fi.cr/DNSKEY (alg 8, id 42205)
  • bncr.fi.cr/DNSKEY (alg 8, id 44529)
  • bncr.fi.cr/DS (alg 8, id 42205)
  • cr/DNSKEY (alg 13, id 41029)
  • cr/DNSKEY (alg 13, id 58628)
  • cr/DS (alg 13, id 58628)
  • fi.cr/DNSKEY (alg 13, id 18946)
  • fi.cr/DNSKEY (alg 13, id 23610)
  • fi.cr/DS (alg 13, id 18946)

Delegation statusDelegation status

Secure (3)
  • . to cr
  • cr to fi.cr
  • fi.cr to bncr.fi.cr

NoticesNotices

Errors (8)
  • bncr.fi.cr zone: The server(s) were not responsive to queries over UDP. See RFC 1035, Sec. 4.2. (201.220.29.22)
  • bncr.fi.cr/NS: No response was received from the server over UDP (tried 12 times). See RFC 1035, Sec. 4.2. (201.220.29.22, UDP_-_NOEDNS_)
  • bncr.fi.cr/CDS has errors; select the "Denial of existence" DNSSEC option to see them.
  • bncr.fi.cr/A has errors; select the "Denial of existence" DNSSEC option to see them.
  • bncr.fi.cr/CDNSKEY has errors; select the "Denial of existence" DNSSEC option to see them.
  • bncr.fi.cr/AAAA has errors; select the "Denial of existence" DNSSEC option to see them.
  • qn4ix.ubvm1.bncr.fi.cr/A has errors; select the "Denial of existence" DNSSEC option to see them.
  • bncr.fi.cr/CNAME has errors; select the "Denial of existence" DNSSEC option to see them.
Warnings (6)
  • bncr.fi.cr/CDS has warnings; select the "Denial of existence" DNSSEC option to see them.
  • bncr.fi.cr/A has warnings; select the "Denial of existence" DNSSEC option to see them.
  • bncr.fi.cr/CDNSKEY has warnings; select the "Denial of existence" DNSSEC option to see them.
  • bncr.fi.cr/AAAA has warnings; select the "Denial of existence" DNSSEC option to see them.
  • qn4ix.ubvm1.bncr.fi.cr/A has warnings; select the "Denial of existence" DNSSEC option to see them.
  • bncr.fi.cr/CNAME has warnings; select the "Denial of existence" DNSSEC option to see them.

DNSKEY legend

Full legend
SEP bit setSEP bit set
Revoke bit setRevoke bit set
Trust anchorTrust anchor
Download: png | svg
Warning JavaScript is required to make the graph below interactive.

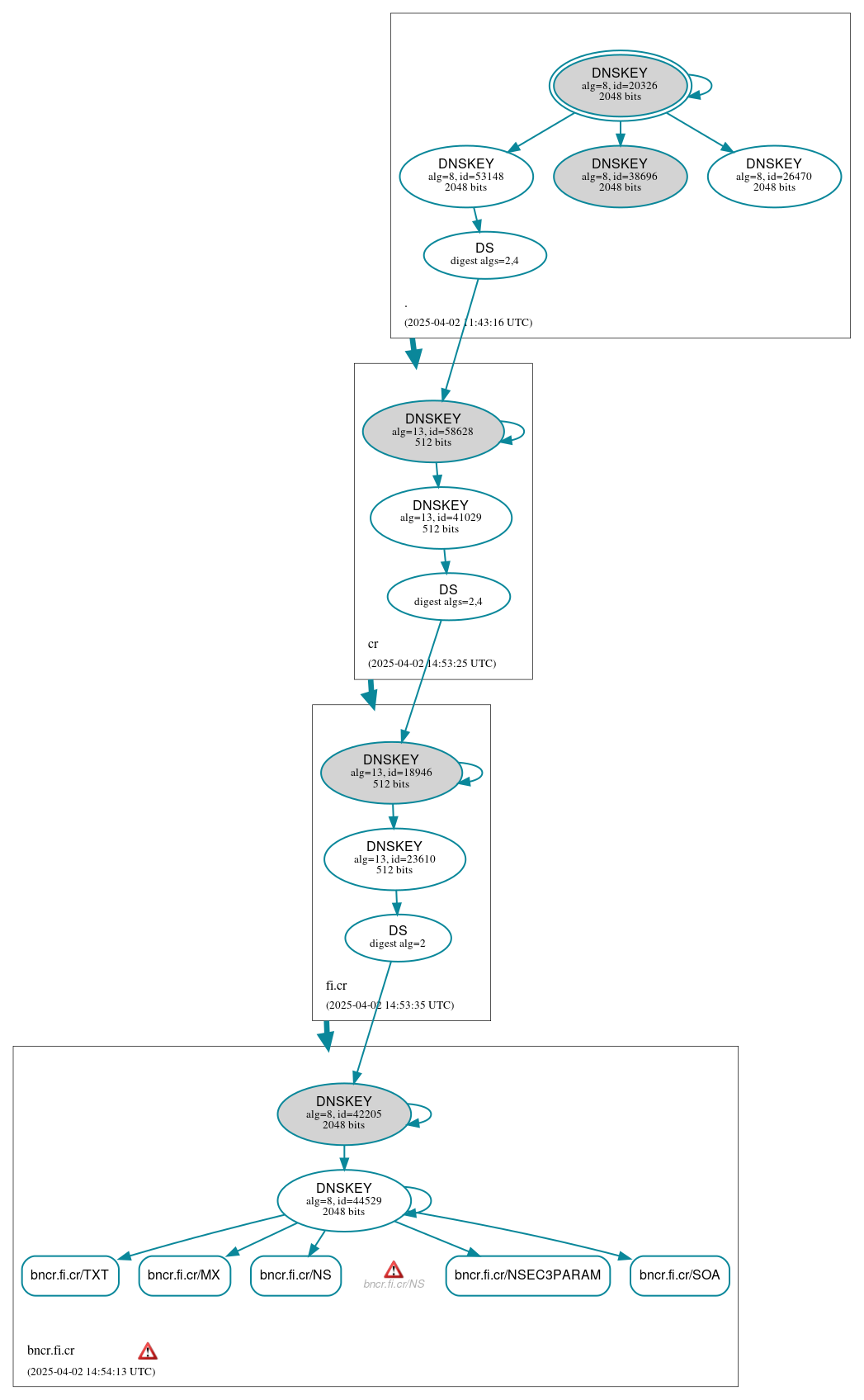

DNSSEC authentication graph
