DNSViz: A DNS visualization tool

bls.gov

Updated: 2024-11-13 12:58:32 UTC (1 day ago) Update now
« Previous analysis | Next analysis »
DNSSEC options (hide)
  1. |?|
  2. |?|
  3. |?|
  4. |?|
  5. |?|
  6. |?|
  7. |?|
  8. |?|
  9. |?|
  10. |?|
Notices
DNSSEC Authentication Chain

RRset statusRRset status

Secure (6)
  • bls.gov/A
  • bls.gov/MX
  • bls.gov/NS
  • bls.gov/NSEC3PARAM
  • bls.gov/SOA
  • bls.gov/TXT

DNSKEY/DS/NSEC statusDNSKEY/DS/NSEC status

Secure (8)
  • ./DNSKEY (alg 8, id 20326)
  • ./DNSKEY (alg 8, id 61050)
  • bls.gov/DNSKEY (alg 8, id 2139)
  • bls.gov/DNSKEY (alg 8, id 53254)
  • bls.gov/DS (alg 8, id 53254)
  • gov/DNSKEY (alg 13, id 2536)
  • gov/DNSKEY (alg 13, id 35496)
  • gov/DS (alg 13, id 2536)

Delegation statusDelegation status

Secure (2)
  • . to gov
  • gov to bls.gov

NoticesNotices

Errors (7)
  • ./DNSKEY: No response was received from the server over UDP (tried 14 times). See RFC 1035, Sec. 4.2. (192.33.4.12, UDP_-_EDNS0_4096_D_KN)
  • ./DNSKEY: No response was received from the server over UDP (tried 4 times). See RFC 1035, Sec. 4.2. (192.33.4.12, UDP_-_EDNS0_512_D_KN)
  • bls.gov/CDNSKEY has errors; select the "Denial of existence" DNSSEC option to see them.
  • bls.gov/CDS has errors; select the "Denial of existence" DNSSEC option to see them.
  • nsk3l.stjvu.bls.gov/A has errors; select the "Denial of existence" DNSSEC option to see them.
  • bls.gov/AAAA has errors; select the "Denial of existence" DNSSEC option to see them.
  • bls.gov/CNAME has errors; select the "Denial of existence" DNSSEC option to see them.
Warnings (5)
  • bls.gov/CDNSKEY has warnings; select the "Denial of existence" DNSSEC option to see them.
  • bls.gov/CDS has warnings; select the "Denial of existence" DNSSEC option to see them.
  • nsk3l.stjvu.bls.gov/A has warnings; select the "Denial of existence" DNSSEC option to see them.
  • bls.gov/AAAA has warnings; select the "Denial of existence" DNSSEC option to see them.
  • bls.gov/CNAME has warnings; select the "Denial of existence" DNSSEC option to see them.

DNSKEY legend

Full legend
SEP bit setSEP bit set
Revoke bit setRevoke bit set
Trust anchorTrust anchor
Download: png | svg
Warning JavaScript is required to make the graph below interactive.

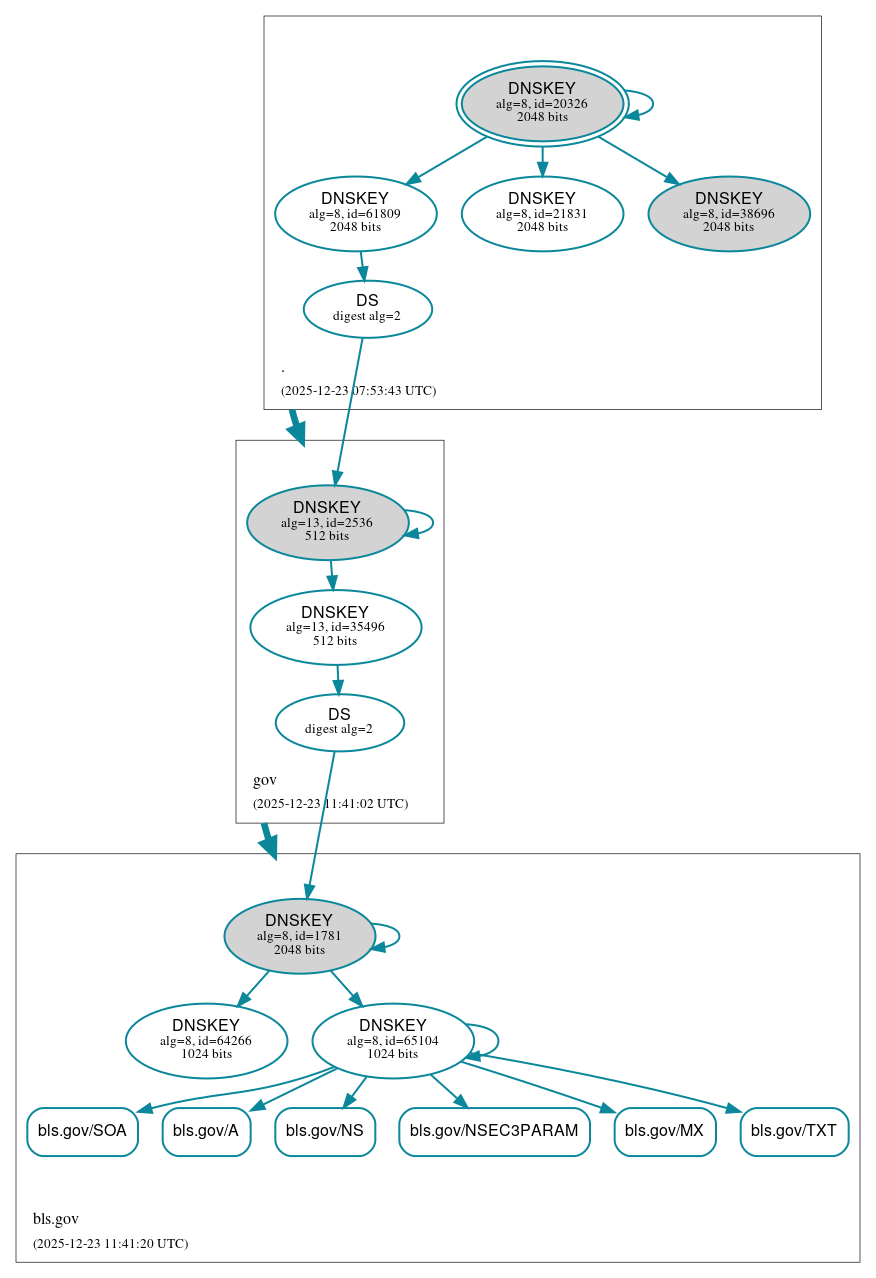

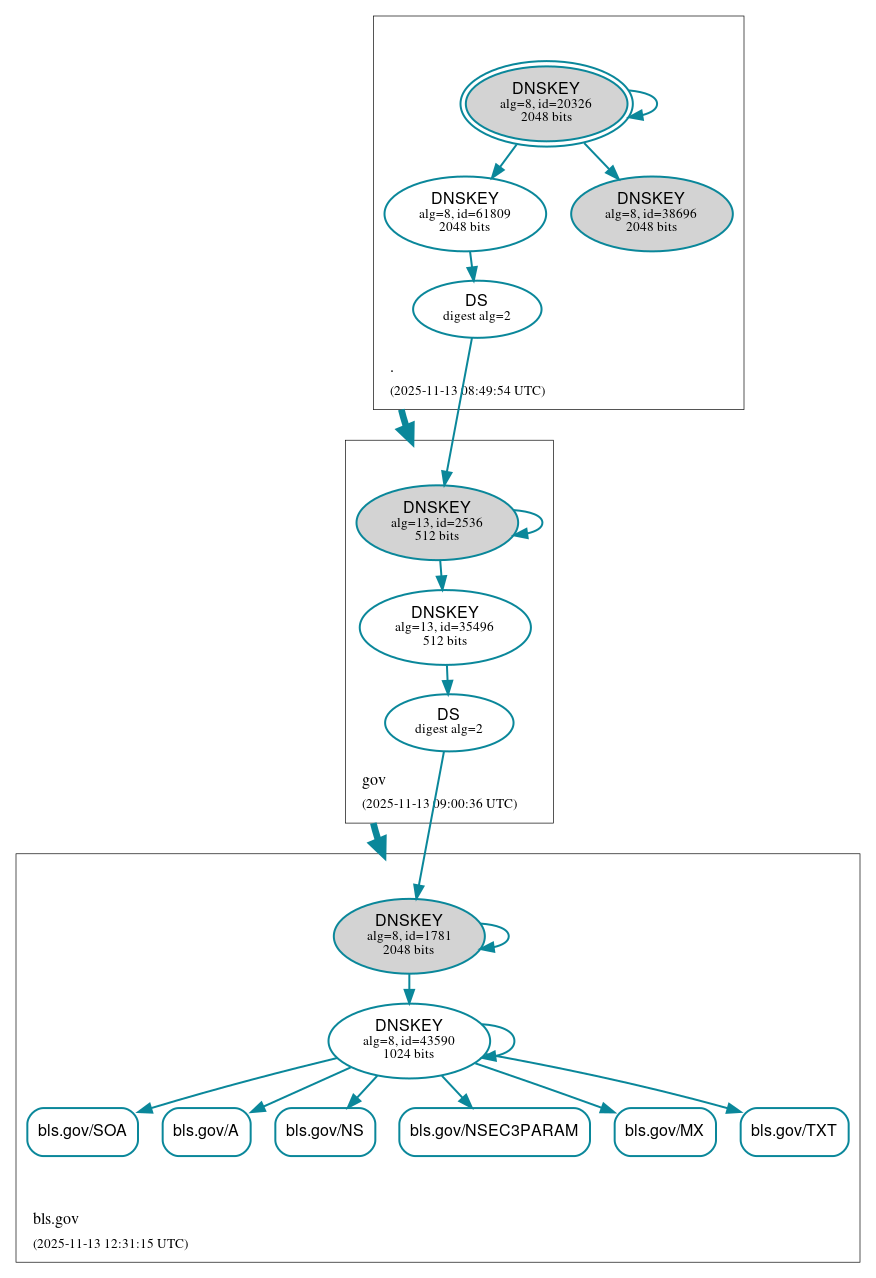

DNSSEC authentication graph
