DNSViz: A DNS visualization tool

bea.gov

Updated: 2021-02-28 18:42:50 UTC (107 days ago) Update now
« Previous analysis | Next analysis »
DNSSEC options (hide)
  1. |?|
  2. |?|
  3. |?|
  4. |?|
  5. |?|
  6. |?|
  7. |?|
Notices
DNSSEC Authentication Chain

RRset statusRRset status

Secure (5)
  • bea.gov/A
  • bea.gov/MX
  • bea.gov/NS
  • bea.gov/SOA
  • bea.gov/TXT

DNSKEY/DS/NSEC statusDNSKEY/DS/NSEC status

Secure (12)
  • ./DNSKEY (alg 8, id 20326)
  • ./DNSKEY (alg 8, id 42351)
  • bea.gov/DNSKEY (alg 7, id 32723)
  • bea.gov/DNSKEY (alg 7, id 41928)
  • bea.gov/DNSKEY (alg 7, id 46548)
  • bea.gov/DNSKEY (alg 7, id 569)
  • bea.gov/DS (alg 7, id 46548)
  • bea.gov/DS (alg 7, id 46548)
  • gov/DNSKEY (alg 8, id 27306)
  • gov/DNSKEY (alg 8, id 7698)
  • gov/DS (alg 8, id 7698)
  • gov/DS (alg 8, id 7698)

Delegation statusDelegation status

Secure (2)
  • . to gov
  • gov to bea.gov

NoticesNotices

Warnings (25)
  • RRSIG bea.gov/A alg 7, id 32723: DNSSEC specification recommends not signing with DNSSEC algorithm 7 (RSASHA1NSEC3SHA1).
  • RRSIG bea.gov/DNSKEY alg 7, id 32723: DNSSEC specification recommends not signing with DNSSEC algorithm 7 (RSASHA1NSEC3SHA1).
  • RRSIG bea.gov/DNSKEY alg 7, id 32723: DNSSEC specification recommends not signing with DNSSEC algorithm 7 (RSASHA1NSEC3SHA1).
  • RRSIG bea.gov/DNSKEY alg 7, id 32723: DNSSEC specification recommends not signing with DNSSEC algorithm 7 (RSASHA1NSEC3SHA1).
  • RRSIG bea.gov/DNSKEY alg 7, id 32723: DNSSEC specification recommends not signing with DNSSEC algorithm 7 (RSASHA1NSEC3SHA1).
  • RRSIG bea.gov/DNSKEY alg 7, id 41928: DNSSEC specification recommends not signing with DNSSEC algorithm 7 (RSASHA1NSEC3SHA1).
  • RRSIG bea.gov/DNSKEY alg 7, id 41928: DNSSEC specification recommends not signing with DNSSEC algorithm 7 (RSASHA1NSEC3SHA1).
  • RRSIG bea.gov/DNSKEY alg 7, id 41928: DNSSEC specification recommends not signing with DNSSEC algorithm 7 (RSASHA1NSEC3SHA1).
  • RRSIG bea.gov/DNSKEY alg 7, id 41928: DNSSEC specification recommends not signing with DNSSEC algorithm 7 (RSASHA1NSEC3SHA1).
  • RRSIG bea.gov/DNSKEY alg 7, id 46548: DNSSEC specification recommends not signing with DNSSEC algorithm 7 (RSASHA1NSEC3SHA1).
  • RRSIG bea.gov/DNSKEY alg 7, id 46548: DNSSEC specification recommends not signing with DNSSEC algorithm 7 (RSASHA1NSEC3SHA1).
  • RRSIG bea.gov/DNSKEY alg 7, id 46548: DNSSEC specification recommends not signing with DNSSEC algorithm 7 (RSASHA1NSEC3SHA1).
  • RRSIG bea.gov/DNSKEY alg 7, id 46548: DNSSEC specification recommends not signing with DNSSEC algorithm 7 (RSASHA1NSEC3SHA1).
  • RRSIG bea.gov/MX alg 7, id 32723: DNSSEC specification recommends not signing with DNSSEC algorithm 7 (RSASHA1NSEC3SHA1).
  • RRSIG bea.gov/NS alg 7, id 32723: DNSSEC specification recommends not signing with DNSSEC algorithm 7 (RSASHA1NSEC3SHA1).
  • RRSIG bea.gov/SOA alg 7, id 32723: DNSSEC specification recommends not signing with DNSSEC algorithm 7 (RSASHA1NSEC3SHA1).
  • RRSIG bea.gov/TXT alg 7, id 32723: DNSSEC specification recommends not signing with DNSSEC algorithm 7 (RSASHA1NSEC3SHA1).
  • bea.gov/DS (alg 7, id 46548): DNSSEC specification prohibits signing with DS records that use digest algorithm 1 (SHA-1).
  • bea.gov/DS (alg 7, id 46548): DNSSEC specification prohibits signing with DS records that use digest algorithm 1 (SHA-1).
  • bea.gov/DS (alg 7, id 46548): DS records with digest type 1 (SHA-1) are ignored when DS records with digest type 2 (SHA-256) exist in the same RRset.
  • bea.gov/DS (alg 7, id 46548): DS records with digest type 1 (SHA-1) are ignored when DS records with digest type 2 (SHA-256) exist in the same RRset.
  • gov/DS (alg 8, id 7698): DNSSEC specification prohibits signing with DS records that use digest algorithm 1 (SHA-1).
  • gov/DS (alg 8, id 7698): DNSSEC specification prohibits signing with DS records that use digest algorithm 1 (SHA-1).
  • gov/DS (alg 8, id 7698): DS records with digest type 1 (SHA-1) are ignored when DS records with digest type 2 (SHA-256) exist in the same RRset.
  • gov/DS (alg 8, id 7698): DS records with digest type 1 (SHA-1) are ignored when DS records with digest type 2 (SHA-256) exist in the same RRset.

DNSKEY legend

Full legend
SEP bit setSEP bit set
Revoke bit setRevoke bit set
Trust anchorTrust anchor
Download: png | svg
Warning JavaScript is required to make the graph below interactive.

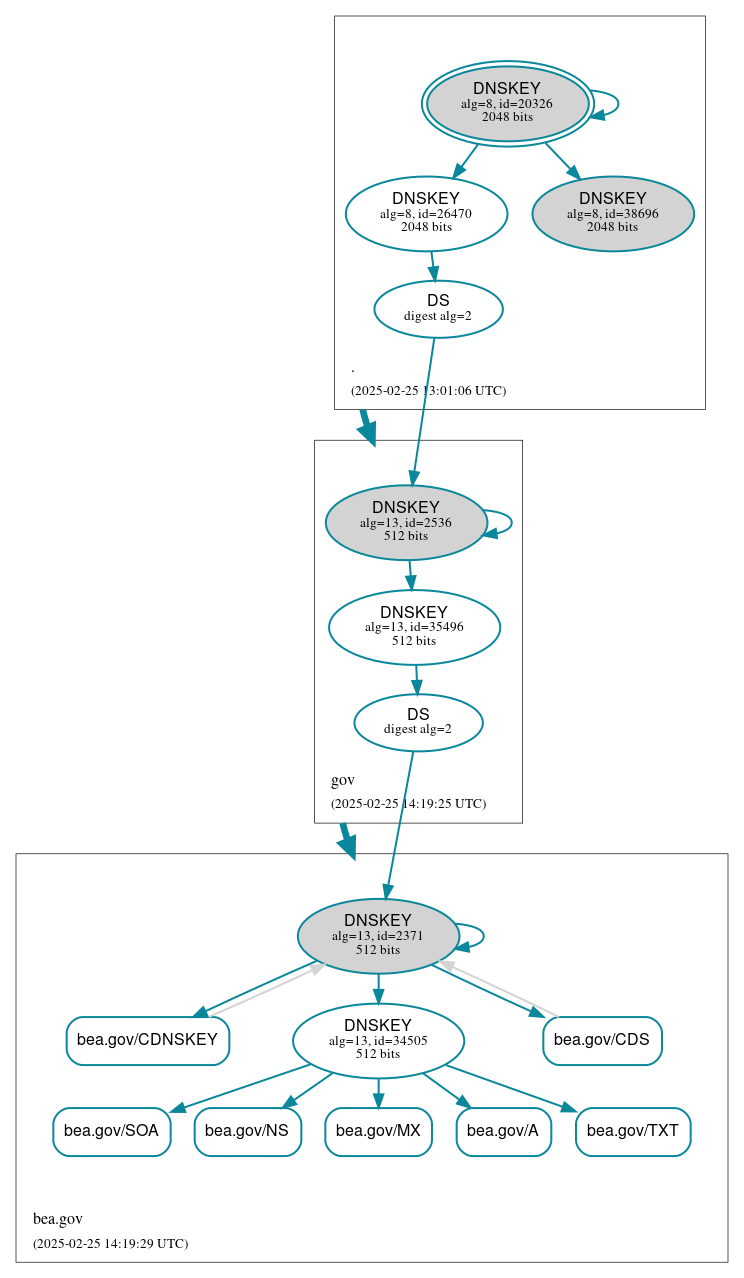

DNSSEC authentication graph
