DNSViz: A DNS visualization tool

accessibility.gov

Updated: 2024-06-06 14:56:50 UTC (123 days ago) Update now
« Previous analysis | Next analysis »
DNSSEC options (hide)
  1. |?|
  2. |?|
  3. |?|
  4. |?|
  5. |?|
  6. |?|
  7. |?|
  8. |?|
  9. |?|
  10. |?|
Notices
DNSSEC Authentication Chain

RRset statusRRset status

Secure (5)
  • accessibility.gov/A
  • accessibility.gov/NS
  • accessibility.gov/NSEC3PARAM
  • accessibility.gov/SOA
  • accessibility.gov/TXT

DNSKEY/DS/NSEC statusDNSKEY/DS/NSEC status

Secure (11)
  • ./DNSKEY (alg 8, id 20326)
  • ./DNSKEY (alg 8, id 5613)
  • accessibility.gov/DNSKEY (alg 8, id 15846)
  • accessibility.gov/DNSKEY (alg 8, id 16415)
  • accessibility.gov/DNSKEY (alg 8, id 18052)
  • accessibility.gov/DS (alg 8, id 16415)
  • accessibility.gov/DS (alg 8, id 18052)
  • accessibility.gov/DS (alg 8, id 25721)
  • gov/DNSKEY (alg 13, id 2536)
  • gov/DNSKEY (alg 13, id 35496)
  • gov/DS (alg 13, id 2536)
Non_existent (1)
  • accessibility.gov/DNSKEY (alg 8, id 25721)

Delegation statusDelegation status

Secure (2)
  • . to gov
  • gov to accessibility.gov

NoticesNotices

Errors (6)
  • accessibility.gov/CDNSKEY has errors; select the "Denial of existence" DNSSEC option to see them.
  • accessibility.gov/AAAA has errors; select the "Denial of existence" DNSSEC option to see them.
  • hxsic.h1aw4.accessibility.gov/A has errors; select the "Denial of existence" DNSSEC option to see them.
  • accessibility.gov/CNAME has errors; select the "Denial of existence" DNSSEC option to see them.
  • accessibility.gov/MX has errors; select the "Denial of existence" DNSSEC option to see them.
  • accessibility.gov/CDS has errors; select the "Denial of existence" DNSSEC option to see them.

DNSKEY legend

Full legend
SEP bit setSEP bit set
Revoke bit setRevoke bit set
Trust anchorTrust anchor
Download: png | svg
Warning JavaScript is required to make the graph below interactive.

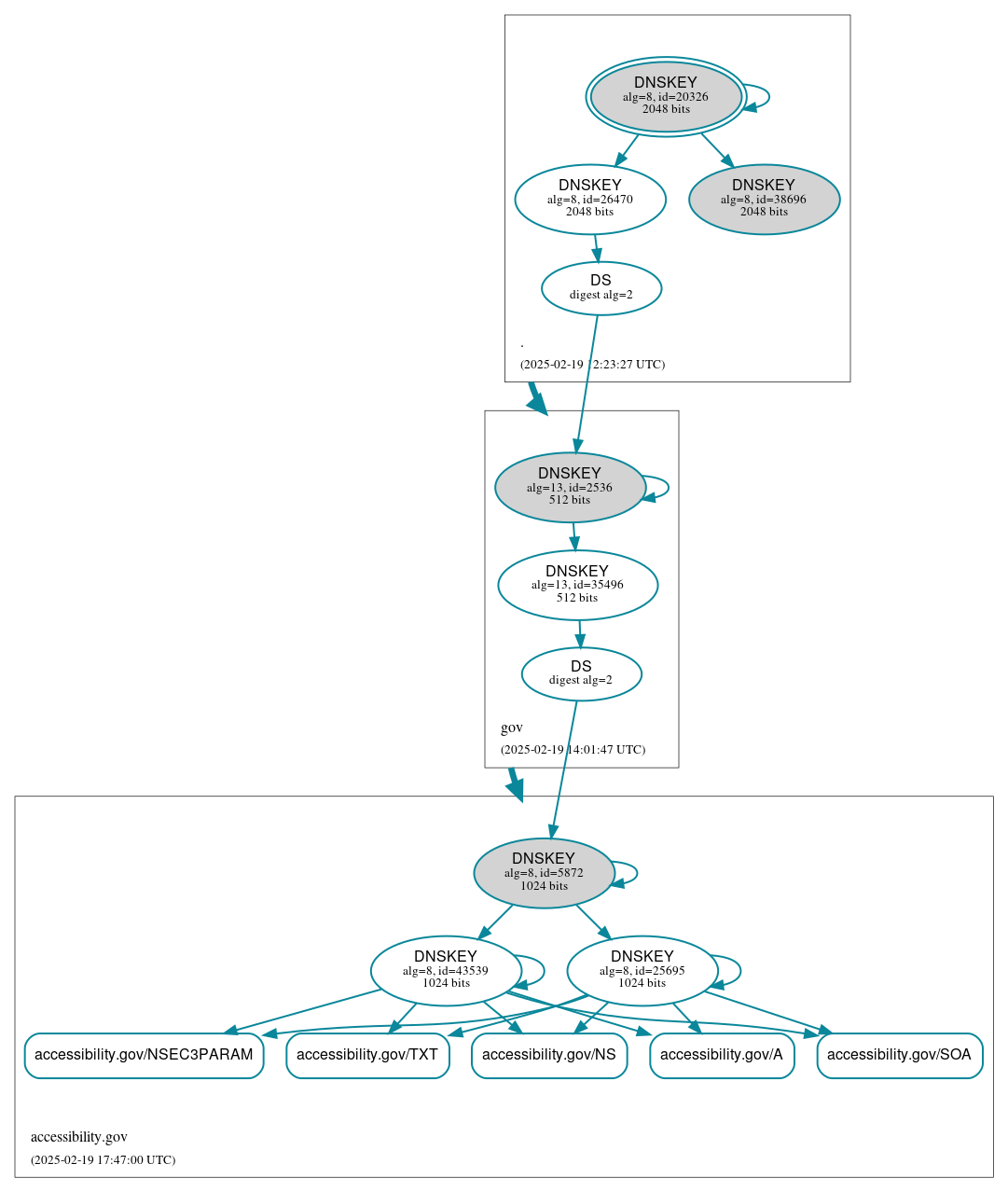

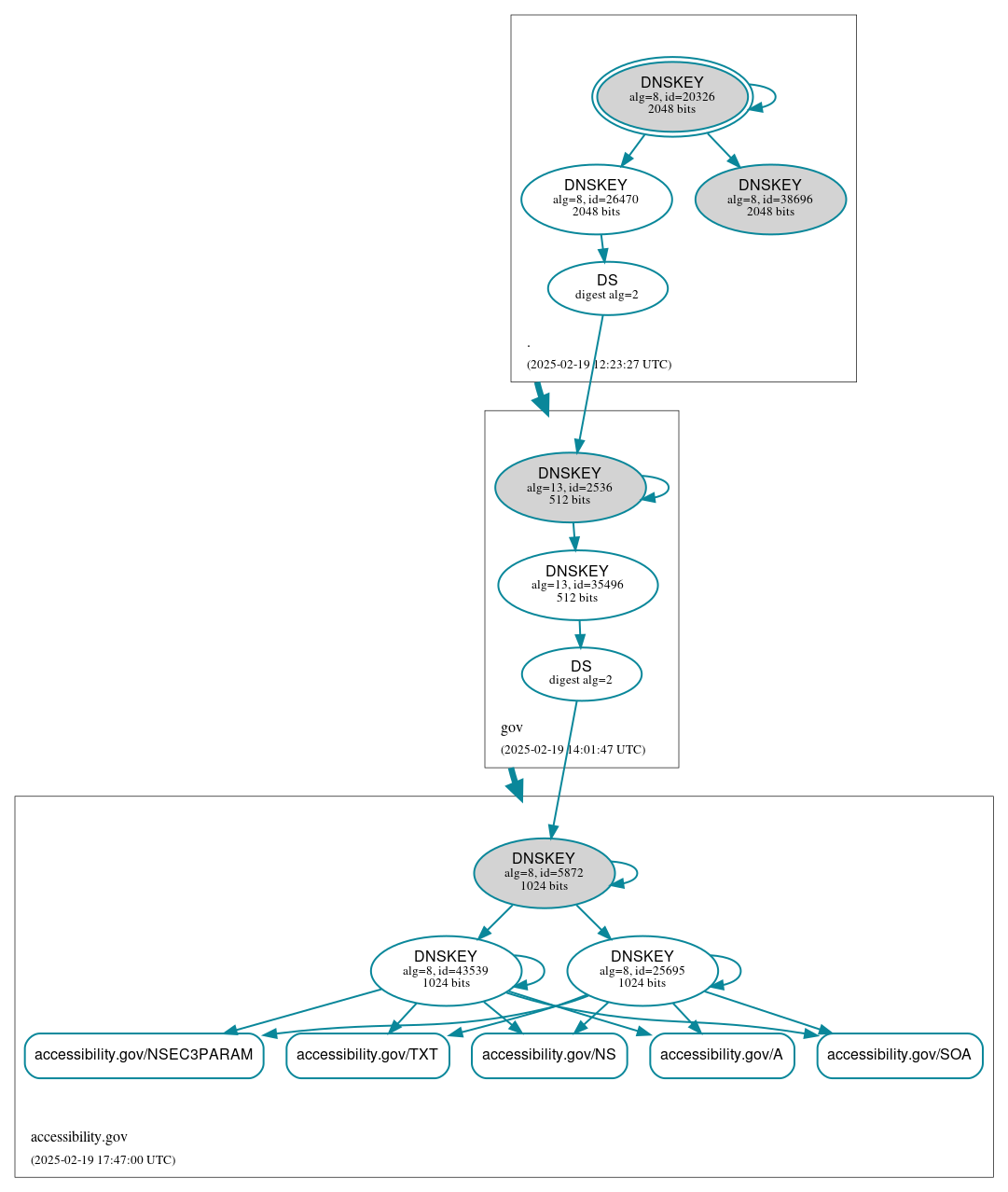

DNSSEC authentication graph
