DNSViz: A DNS visualization tool

ac.uk

Updated: 2024-06-14 16:20:38 UTC (1 day ago) Update now
« Previous analysis | Next analysis »
DNSSEC options (hide)
  1. |?|
  2. |?|
  3. |?|
  4. |?|
  5. |?|
  6. |?|
  7. |?|
  8. |?|
  9. |?|
Notices
DNSSEC Authentication Chain

RRset statusRRset status

Secure (3)
  • ac.uk/NS
  • ac.uk/NSEC3PARAM
  • ac.uk/SOA

DNSKEY/DS/NSEC statusDNSKEY/DS/NSEC status

Secure (10)
  • ./DNSKEY (alg 8, id 20326)
  • ./DNSKEY (alg 8, id 5613)
  • ac.uk/DNSKEY (alg 8, id 1593)
  • ac.uk/DNSKEY (alg 8, id 45874)
  • ac.uk/DNSKEY (alg 8, id 54274)
  • ac.uk/DNSKEY (alg 8, id 63490)
  • ac.uk/DS (alg 8, id 45874)
  • uk/DNSKEY (alg 8, id 43056)
  • uk/DNSKEY (alg 8, id 43876)
  • uk/DS (alg 8, id 43876)

Delegation statusDelegation status

Secure (2)
  • . to uk
  • uk to ac.uk

NoticesNotices

Errors (8)
  • ac.uk/AAAA has errors; select the "Denial of existence" DNSSEC option to see them.
  • 4617n.xnlgz.ac.uk/A has errors; select the "Denial of existence" DNSSEC option to see them.
  • ac.uk/A has errors; select the "Denial of existence" DNSSEC option to see them.
  • ac.uk/CDNSKEY has errors; select the "Denial of existence" DNSSEC option to see them.
  • ac.uk/CNAME has errors; select the "Denial of existence" DNSSEC option to see them.
  • ac.uk/MX has errors; select the "Denial of existence" DNSSEC option to see them.
  • ac.uk/CDS has errors; select the "Denial of existence" DNSSEC option to see them.
  • ac.uk/TXT has errors; select the "Denial of existence" DNSSEC option to see them.

DNSKEY legend

Full legend
SEP bit setSEP bit set
Revoke bit setRevoke bit set
Trust anchorTrust anchor
Download: png | svg
Warning JavaScript is required to make the graph below interactive.

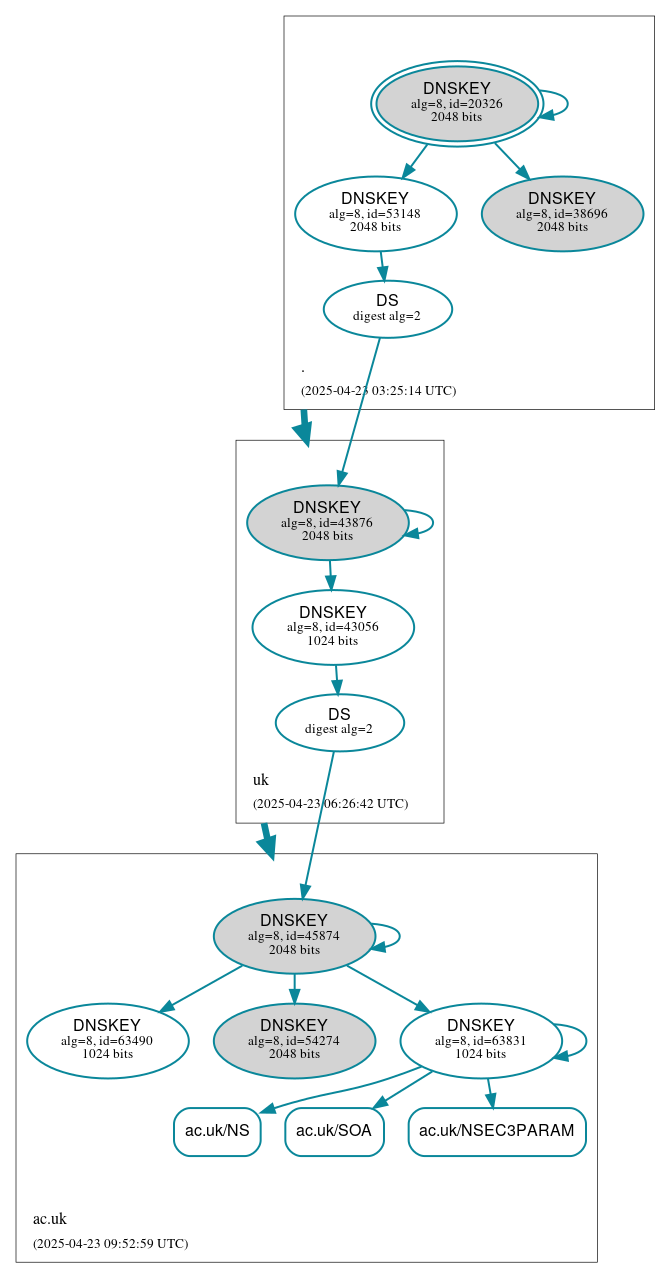

DNSSEC authentication graph
