DNSViz: A DNS visualization tool

ucr.edu

Updated: 2019-03-08 18:44:44 UTC (15 days ago) Update now
« Previous analysis | Next analysis »
DNSSEC options (hide)
  1. |?|
  2. |?|
  3. |?|
  4. |?|
  5. |?|
  6. |?|
  7. |?|
Notices
DNSSEC Authentication Chain

RRset statusRRset status

Secure (6)
  • ucr.edu/A
  • ucr.edu/MX
  • ucr.edu/NS
  • ucr.edu/SOA
  • ucr.edu/SOA
  • ucr.edu/TXT

DNSKEY/DS/NSEC statusDNSKEY/DS/NSEC status

Secure (12)
  • ./DNSKEY (alg 8, id 16749)
  • ./DNSKEY (alg 8, id 19164)
  • ./DNSKEY (alg 8, id 20326)
  • edu/DNSKEY (alg 8, id 28065)
  • edu/DNSKEY (alg 8, id 47927)
  • edu/DS (alg 8, id 28065)
  • ucr.edu/DNSKEY (alg 10, id 25430)
  • ucr.edu/DNSKEY (alg 10, id 26666)
  • ucr.edu/DNSKEY (alg 10, id 29547)
  • ucr.edu/DNSKEY (alg 10, id 3942)
  • ucr.edu/DS (alg 10, id 29547)
  • ucr.edu/DS (alg 10, id 3942)

Delegation statusDelegation status

Secure (2)
  • . to edu
  • edu to ucr.edu

DNSKEY legend

Full legend
SEP bit setSEP bit set
Revoke bit setRevoke bit set
Trust anchorTrust anchor
Download: png | svg
Warning JavaScript is required to make the graph below interactive.

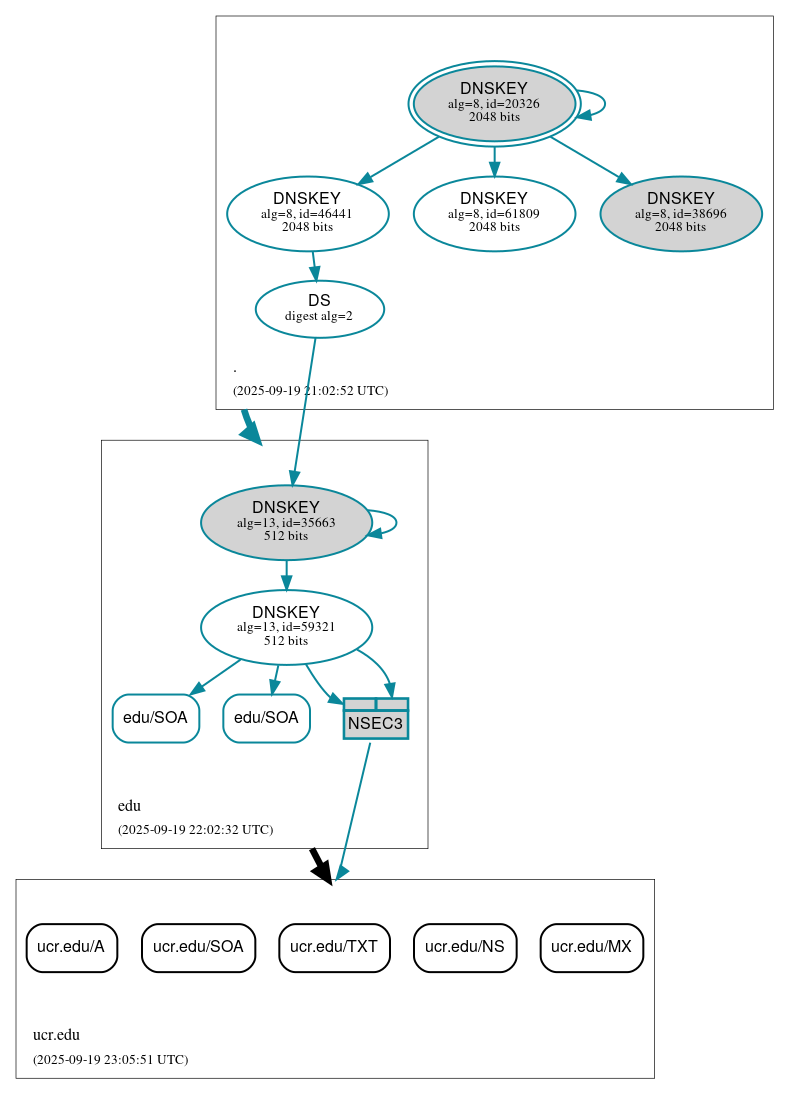

DNSSEC authentication graph
