DNSViz: A DNS visualization tool

msu.edu

Updated: 2024-03-01 18:26:16 UTC (48 days ago) Update now
« Previous analysis | Next analysis »
DNSSEC options (hide)
  1. |?|
  2. |?|
  3. |?|
  4. |?|
  5. |?|
  6. |?|
  7. |?|
Notices
DNSSEC Authentication Chain

RRset statusRRset status

Insecure (5)
  • msu.edu/A
  • msu.edu/MX
  • msu.edu/NS
  • msu.edu/SOA
  • msu.edu/TXT
Secure (2)
  • edu/SOA
  • edu/SOA

DNSKEY/DS/NSEC statusDNSKEY/DS/NSEC status

Secure (6)
  • ./DNSKEY (alg 8, id 20326)
  • ./DNSKEY (alg 8, id 30903)
  • NSEC3 proving non-existence of msu.edu/DS
  • edu/DNSKEY (alg 13, id 30678)
  • edu/DNSKEY (alg 13, id 35663)
  • edu/DS (alg 13, id 35663)

Delegation statusDelegation status

Insecure (1)
  • edu to msu.edu
Secure (1)
  • . to edu

NoticesNotices

Warnings (1)
  • msu.edu/TXT: No response was received until the UDP payload size was decreased, indicating that the server might be attempting to send a payload that exceeds the path maximum transmission unit (PMTU) size. (205.251.192.64, 205.251.194.153, 2600:9000:5300:4000::1, 2600:9000:5305:9800::1, UDP_-_EDNS0_4096_D_KN)

DNSKEY legend

Full legend
SEP bit setSEP bit set
Revoke bit setRevoke bit set
Trust anchorTrust anchor
Download: png | svg
Warning JavaScript is required to make the graph below interactive.

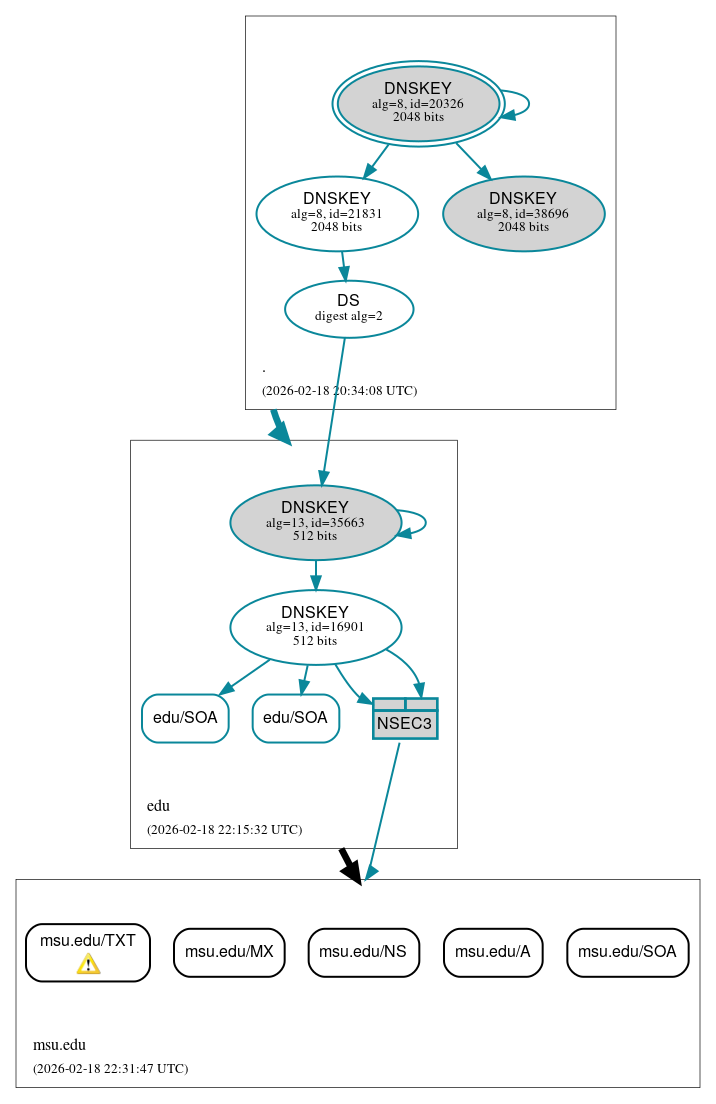

DNSSEC authentication graph
