DNSViz: A DNS visualization tool

monmouth.edu

Updated: 2019-01-10 22:19:00 UTC (9 days ago) Update now
« Previous analysis | Next analysis »
DNSSEC options (hide)
  1. |?|
  2. |?|
  3. |?|
  4. |?|
  5. |?|
  6. |?|
  7. |?|
Notices
DNSSEC Authentication Chain

RRset statusRRset status

Secure (6)
  • monmouth.edu/A
  • monmouth.edu/AAAA
  • monmouth.edu/MX
  • monmouth.edu/NS
  • monmouth.edu/SOA
  • monmouth.edu/TXT

DNSKEY/DS/NSEC statusDNSKEY/DS/NSEC status

Secure (14)
  • ./DNSKEY (alg 8, id 16749)
  • ./DNSKEY (alg 8, id 19036)
  • ./DNSKEY (alg 8, id 20326)
  • ./DNSKEY (alg 8, id 2134)
  • edu/DNSKEY (alg 8, id 28065)
  • edu/DNSKEY (alg 8, id 37217)
  • edu/DNSKEY (alg 8, id 47927)
  • edu/DS (alg 8, id 28065)
  • monmouth.edu/DNSKEY (alg 13, id 2045)
  • monmouth.edu/DNSKEY (alg 13, id 35009)
  • monmouth.edu/DNSKEY (alg 7, id 38868)
  • monmouth.edu/DNSKEY (alg 7, id 57032)
  • monmouth.edu/DS (alg 13, id 2045)
  • monmouth.edu/DS (alg 7, id 38868)

Delegation statusDelegation status

Secure (2)
  • . to edu
  • edu to monmouth.edu

DNSKEY legend

Full legend
SEP bit setSEP bit set
Revoke bit setRevoke bit set
Trust anchorTrust anchor
Download: png | svg
Warning JavaScript is required to make the graph below interactive.

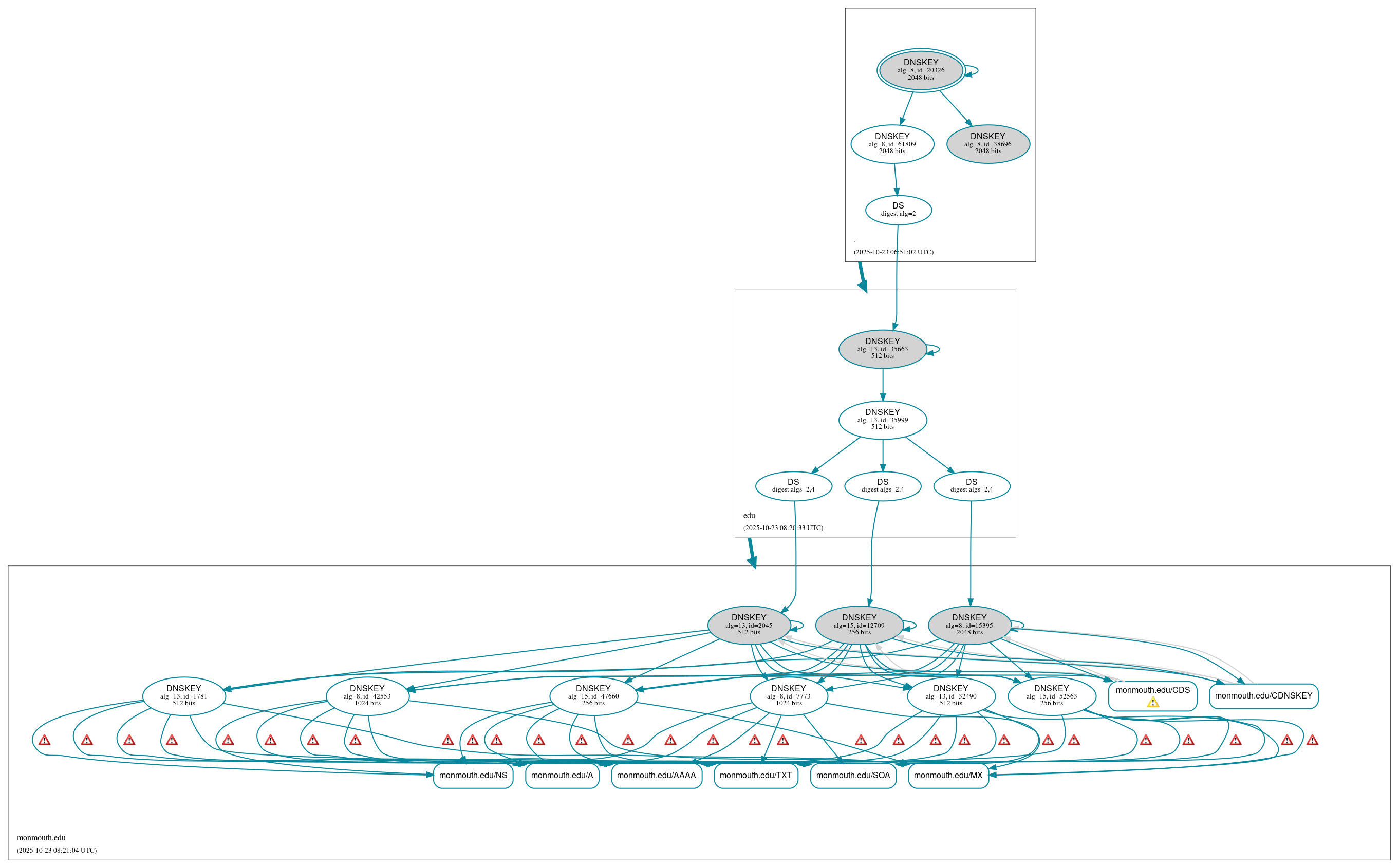

DNSSEC authentication graph
