DNSViz: A DNS visualization tool

gov.eg

Updated: 2024-03-25 09:13:45 UTC (39 days ago) Update now
« Previous analysis | Next analysis »
DNSSEC options (hide)
  1. |?|
  2. |?|
  3. |?|
  4. |?|
  5. |?|
  6. |?|
  7. |?|
Notices
DNSSEC Authentication Chain

RRset statusRRset status

Insecure (4)
  • eg/SOA
  • eg/SOA
  • gov.eg/NS
  • gov.eg/SOA
Secure (1)
  • ./SOA

DNSKEY/DS/NSEC statusDNSKEY/DS/NSEC status

Secure (4)
  • ./DNSKEY (alg 8, id 20326)
  • ./DNSKEY (alg 8, id 30903)
  • ./DNSKEY (alg 8, id 5613)
  • NSEC proving non-existence of eg/DS

Delegation statusDelegation status

Insecure (2)
  • . to eg
  • eg to gov.eg

NoticesNotices

Errors (4)
  • gov.eg zone: The server(s) were not responsive to queries over TCP. (193.227.1.1)
  • gov.eg zone: The server(s) were not responsive to queries over UDP. (163.121.2.2)
  • gov.eg/NS: No response was received from the server over UDP (tried 12 times). (163.121.2.2, UDP_-_NOEDNS_)
  • gov.eg/SOA: No response was received from the server over TCP (tried 3 times). (193.227.1.1, TCP_-_EDNS0_4096_D_N)
Warnings (3)
  • . to eg: The following NS name(s) were found in the authoritative NS RRset, but not in the delegation NS RRset (i.e., in the . zone): dns-eg.univie.ac.at
  • . to eg: The following NS name(s) were found in the delegation NS RRset (i.e., in the . zone), but not in the authoritative NS RRset: ns5.univie.ac.at
  • eg to gov.eg: The following NS name(s) were found in the delegation NS RRset (i.e., in the eg zone), but not in the authoritative NS RRset: ns.idsc.gov.eg

DNSKEY legend

Full legend
SEP bit setSEP bit set
Revoke bit setRevoke bit set
Trust anchorTrust anchor
Download: png | svg
Warning JavaScript is required to make the graph below interactive.

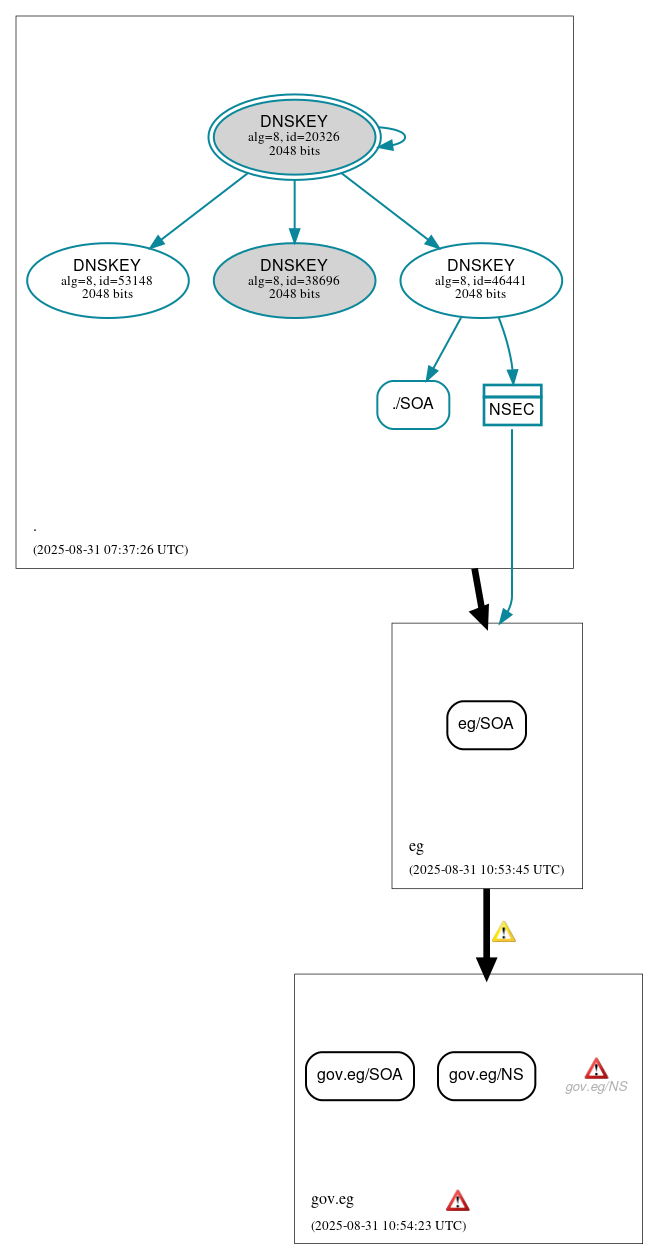

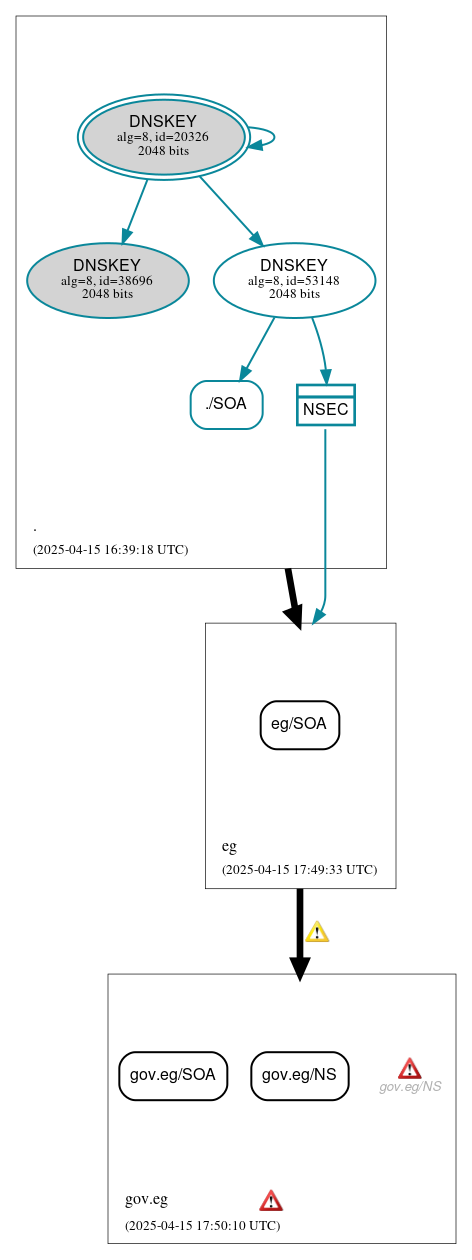

DNSSEC authentication graph
