DNSViz: A DNS visualization tool

example.com

Updated: 2017-11-21 02:58:14 UTC (3 days ago) Update now
« Previous analysis | Next analysis »
DNSSEC options (hide)
  1. |?|
  2. |?|
  3. |?|
  4. |?|
  5. |?|
  6. |?|
  7. |?|
Notices
DNSSEC Authentication Chain

RRset statusRRset status

Secure (5)
  • example.com/A
  • example.com/AAAA
  • example.com/NS
  • example.com/SOA
  • example.com/TXT

DNSKEY/DS/NSEC statusDNSKEY/DS/NSEC status

Secure (12)
  • ./DNSKEY (alg 8, id 19036)
  • ./DNSKEY (alg 8, id 20326)
  • ./DNSKEY (alg 8, id 46809)
  • com/DNSKEY (alg 8, id 11324)
  • com/DNSKEY (alg 8, id 30909)
  • com/DS (alg 8, id 30909)
  • example.com/DNSKEY (alg 8, id 30381)
  • example.com/DNSKEY (alg 8, id 31406)
  • example.com/DNSKEY (alg 8, id 45620)
  • example.com/DS (alg 8, id 31406)
  • example.com/DS (alg 8, id 31589)
  • example.com/DS (alg 8, id 43547)
Non_existent (2)
  • example.com/DNSKEY (alg 8, id 31589)
  • example.com/DNSKEY (alg 8, id 43547)

Delegation statusDelegation status

Secure (2)
  • . to com
  • com to example.com

DNSKEY legend

Full legend
SEP bit setSEP bit set
Revoke bit setRevoke bit set
Trust anchorTrust anchor
Download: png | svg
Warning JavaScript is required to make the graph below interactive.

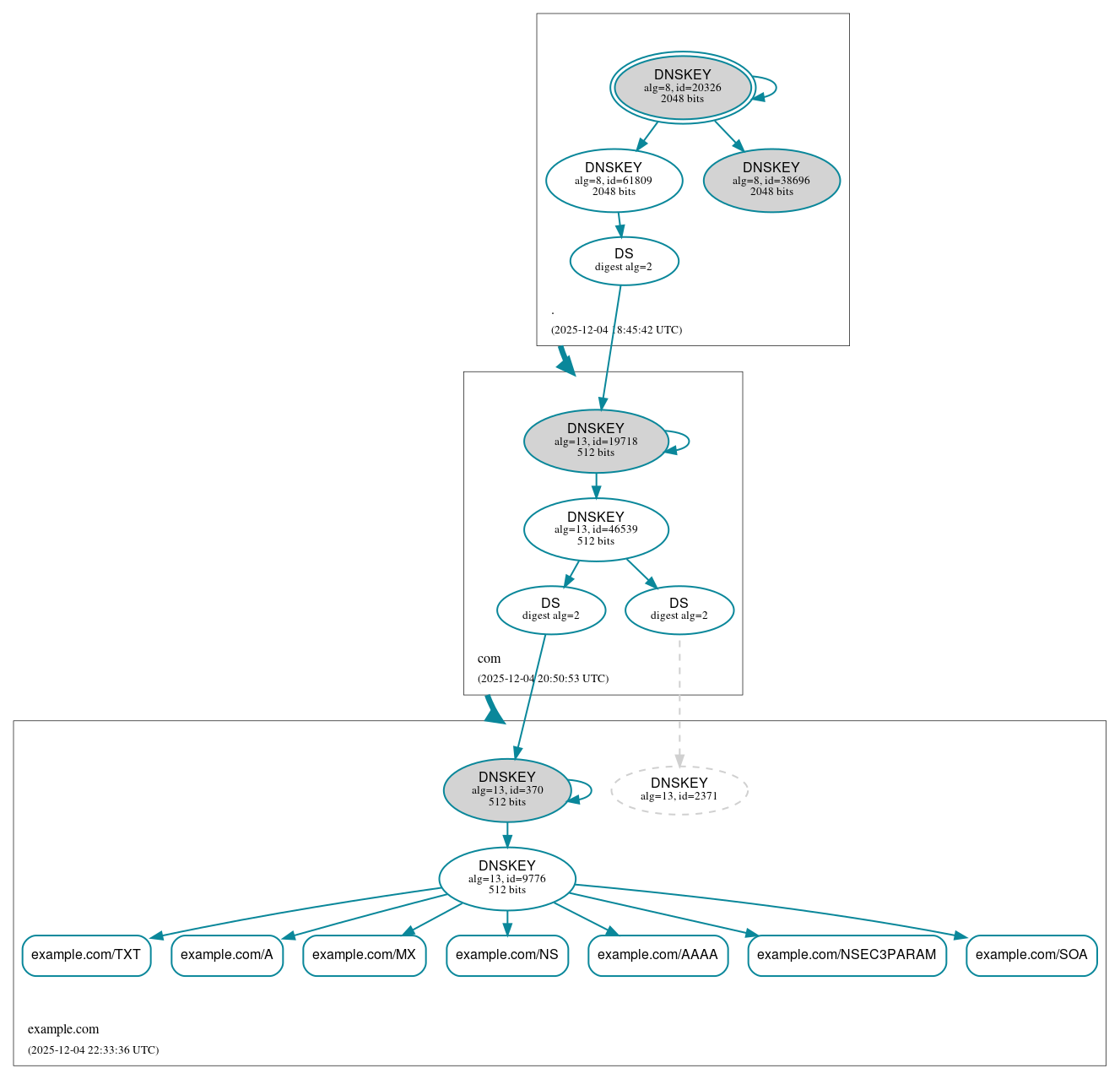

DNSSEC authentication graph
