debian.org | DNSViz

debian.org

Updated: 2024-04-18 16:08:40 UTC (1 day ago) Update now

DNSSEC options (hide)

|?| RR types:
|?| DNSSEC algorithms:
|?| DS digest algorithms:
|?| Denial of existence:
|?| Redundant edges:
|?| Trust anchors:
- Root zone KSK
|?| Additional trusted keys:

Notices

DNSSEC Authentication Chain

RRset status

Secure (7)

debian.org/A
debian.org/AAAA
debian.org/MX
debian.org/NS
debian.org/NSEC3PARAM
debian.org/SOA
debian.org/TXT

DNSKEY/DS/NSEC status

Secure (10)

./DNSKEY (alg 8, id 20326)
./DNSKEY (alg 8, id 5613)
debian.org/DNSKEY (alg 8, id 20225)
debian.org/DNSKEY (alg 8, id 40899)
debian.org/DNSKEY (alg 8, id 59788)
debian.org/DS (alg 8, id 20225)
org/DNSKEY (alg 8, id 26974)
org/DNSKEY (alg 8, id 3093)
org/DNSKEY (alg 8, id 55149)
org/DS (alg 8, id 26974)

Delegation status

Secure (2)

. to org
org to debian.org

Notices

Errors (3)

debian.org zone: The server(s) were not responsive to queries over UDP. (2620:49:4::10)
debian.org/A: No response was received from the server over UDP (tried 12 times). (2620:49:4::10, UDP_-_NOEDNS_)
debian.org/NS: No response was received from the server over UDP (tried 12 times). (2620:49:4::10, UDP_-_NOEDNS_)

DNSKEY legend

Full legend

	SEP bit set
	Revoke bit set
	Trust anchor

See also

DNSSEC Debugger by Verisign Labs.

Download: png | svg

Warning

JavaScript is required to make the graph below interactive.

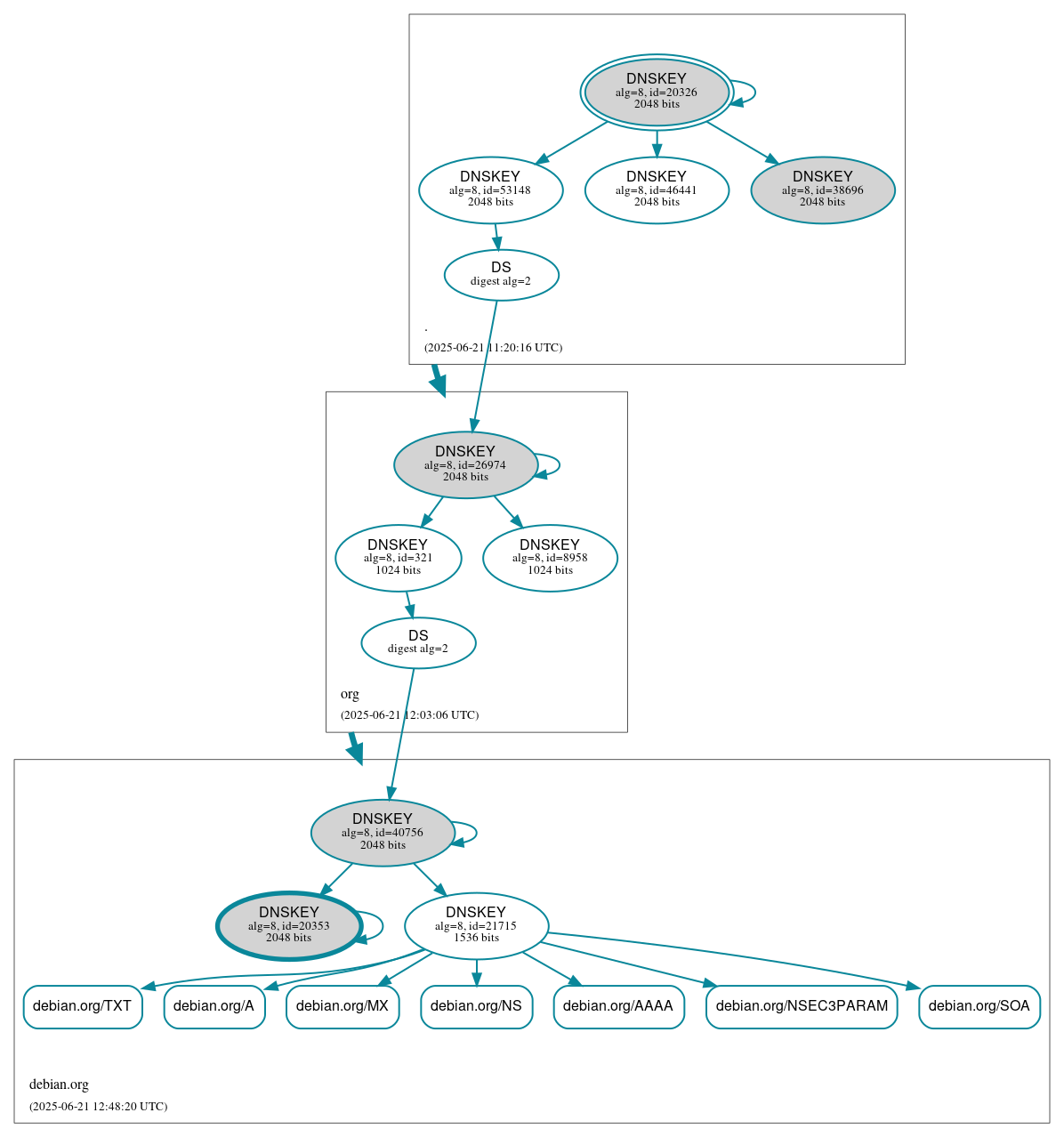

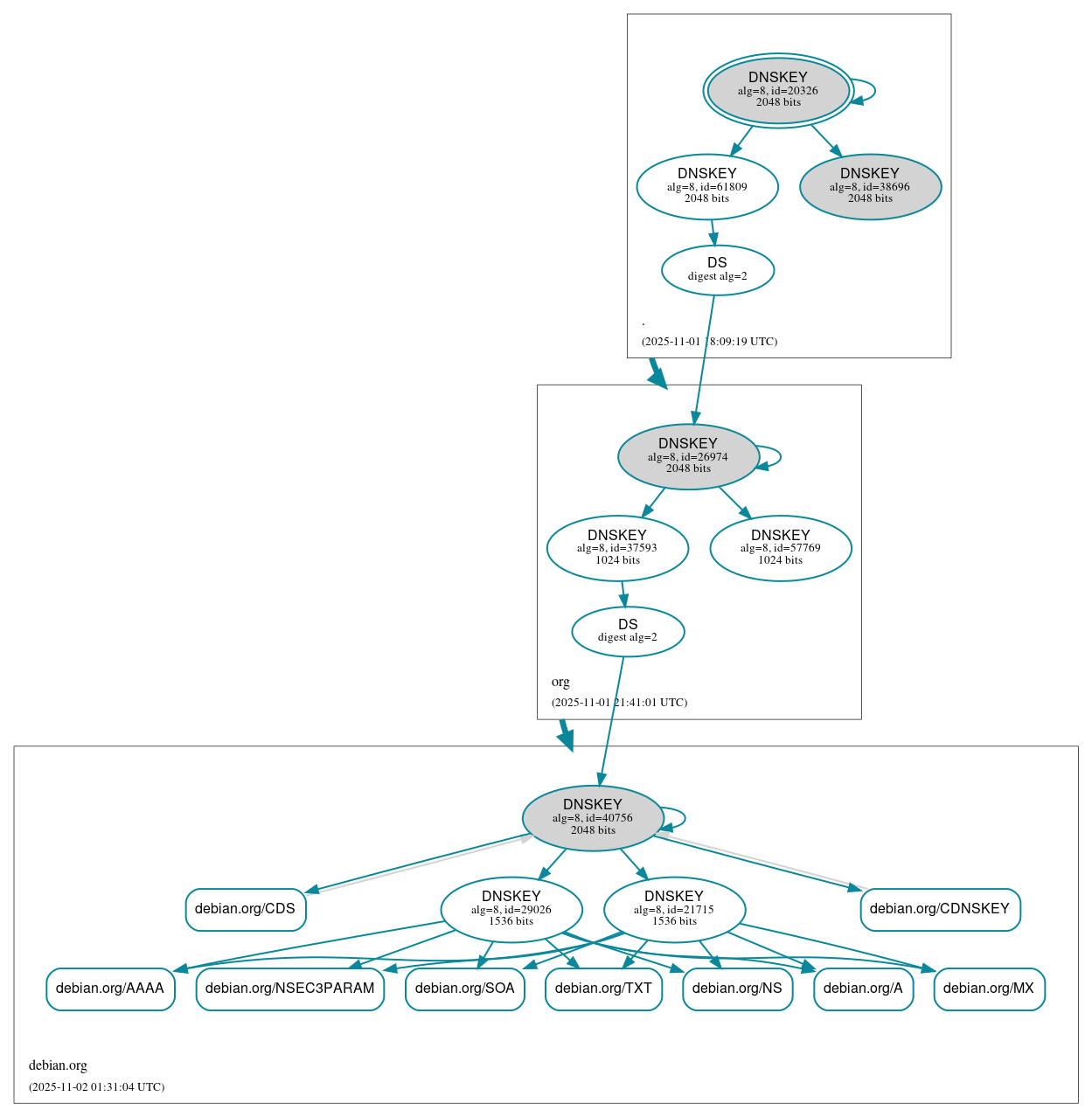

DNSSEC authentication graph
