DNSViz: A DNS visualization tool

cao.gov

Updated: 2024-01-23 15:40:59 UTC (87 days ago) Update now
« Previous analysis | Next analysis »
DNSSEC options (hide)
  1. |?|
  2. |?|
  3. |?|
  4. |?|
  5. |?|
  6. |?|
  7. |?|
Notices
DNSSEC Authentication Chain

RRset statusRRset status

Secure (6)
  • cao.gov/A
  • cao.gov/AAAA
  • cao.gov/NS
  • cao.gov/NSEC3PARAM
  • cao.gov/SOA
  • cao.gov/TXT

DNSKEY/DS/NSEC statusDNSKEY/DS/NSEC status

Secure (10)
  • ./DNSKEY (alg 8, id 20326)
  • ./DNSKEY (alg 8, id 30903)
  • cao.gov/DNSKEY (alg 7, id 15823)
  • cao.gov/DNSKEY (alg 7, id 17885)
  • cao.gov/DNSKEY (alg 7, id 4115)
  • cao.gov/DS (alg 7, id 15823)
  • gov/DNSKEY (alg 8, id 10104)
  • gov/DNSKEY (alg 8, id 49735)
  • gov/DNSKEY (alg 8, id 64280)
  • gov/DS (alg 8, id 64280)

Delegation statusDelegation status

Secure (2)
  • . to gov
  • gov to cao.gov

NoticesNotices

Warnings (11)
  • RRSIG cao.gov/A alg 7, id 17885: DNSSEC specification recommends not signing with DNSSEC algorithm 7 (RSASHA1NSEC3SHA1).
  • RRSIG cao.gov/AAAA alg 7, id 17885: DNSSEC specification recommends not signing with DNSSEC algorithm 7 (RSASHA1NSEC3SHA1).
  • RRSIG cao.gov/DNSKEY alg 7, id 15823: DNSSEC specification recommends not signing with DNSSEC algorithm 7 (RSASHA1NSEC3SHA1).
  • RRSIG cao.gov/DNSKEY alg 7, id 15823: DNSSEC specification recommends not signing with DNSSEC algorithm 7 (RSASHA1NSEC3SHA1).
  • RRSIG cao.gov/DNSKEY alg 7, id 15823: DNSSEC specification recommends not signing with DNSSEC algorithm 7 (RSASHA1NSEC3SHA1).
  • RRSIG cao.gov/NS alg 7, id 17885: DNSSEC specification recommends not signing with DNSSEC algorithm 7 (RSASHA1NSEC3SHA1).
  • RRSIG cao.gov/NSEC3PARAM alg 7, id 17885: DNSSEC specification recommends not signing with DNSSEC algorithm 7 (RSASHA1NSEC3SHA1).
  • RRSIG cao.gov/SOA alg 7, id 17885: DNSSEC specification recommends not signing with DNSSEC algorithm 7 (RSASHA1NSEC3SHA1).
  • RRSIG cao.gov/TXT alg 7, id 17885: DNSSEC specification recommends not signing with DNSSEC algorithm 7 (RSASHA1NSEC3SHA1).
  • gov to cao.gov: The following NS name(s) were found in the authoritative NS RRset, but not in the delegation NS RRset (i.e., in the gov zone): a12-64.akam.net, a5-64.akam.net, a22-66.akam.net, a20-65.akam.net, a1-61.akam.net, a3-67.akam.net
  • gov to cao.gov: The following NS name(s) were found in the delegation NS RRset (i.e., in the gov zone), but not in the authoritative NS RRset: asia9.akam.net, ns1-145.akam.net, ns1-176.akam.net, use6.akam.net, usw1.akam.net, usw5.akam.net, usw6.akam.net, zc.akam.net

DNSKEY legend

Full legend
SEP bit setSEP bit set
Revoke bit setRevoke bit set
Trust anchorTrust anchor
Download: png | svg
Warning JavaScript is required to make the graph below interactive.

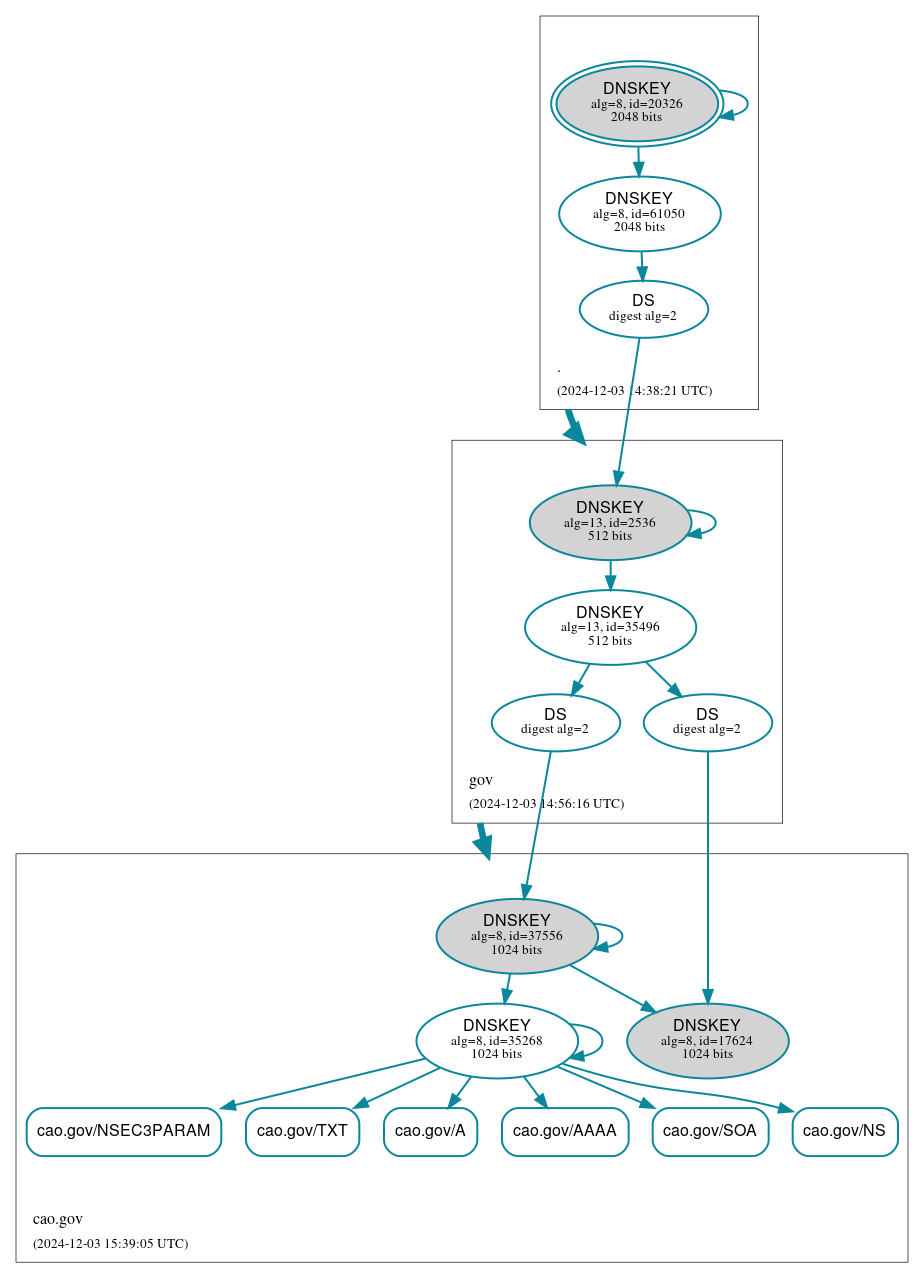

DNSSEC authentication graph
